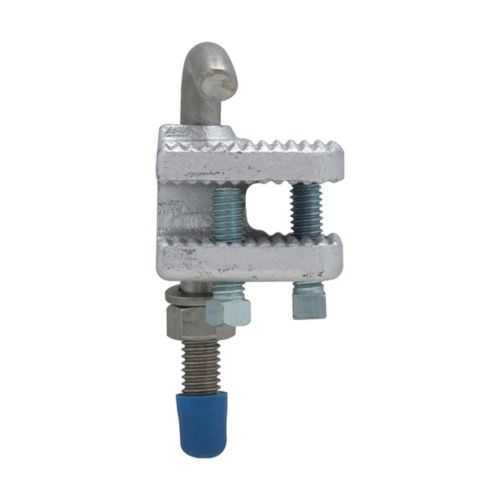

Eaton LCC4 Cable Tray Clamp - Cast Iron 1-1/4in NEC/CEC
Part Number: LCC4
Quick Summary
LCC4 Cable Tray Conduit Clamp secures cable trays and conduits to outside rail systems in industrial installations. When misalignment or loosened fittings cause vibration or abrasion, you risk downtime and safety concerns. This clamp is rated for ordinary/non-hazardous locations and conforms to NEC/CEC standards, with UL Canada certification documented for reliability. By pairing with outside rail trays of 1-1/4 inch trade size, it streamlines installation, reduces parts variability, and supports scalable cable management in industrial facilities.
Product Information
Extended Description
LCC4 Eaton: Eaton Crouse-Hinds series LCC cable tray conduit clamp, Cast iron, 1-1/4", For use with outside rail tray
Product Name
Eaton Crouse-Hinds series LCC cable tray conduit clamp
Catalog Number
LCC4
UPC
782274128641
Product Length/Depth
1.69 in
Product Height
4 in
Product Width
1.69 in
Product Weight
0.74 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with outside rail tray
Trade size
1-1/4"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps Canadian certification
LCC Cable Tray Conduit Clamps Canadian certification
IF 596 - LCC Cable Tray Conduit Clamps
Eaton Specification Sheet - LCC4
Material in cast iron delivers rugged durability for long service life, minimizing maintenance in harsh environments and reducing total cost of ownership. The LCC4 supports a 1-1/4 inch trade size, aligning with common outside rail tray systems and enabling rapid field installation with minimal adapters. Its compact 1.69 x 1.69 inch footprint and 4 inch height ensure a secure fit without crowding adjacent components, improving airflow and accessibility during maintenance. Compliance with NEC/CEC standards and UL Canada certification provide regulatory assurance for cross-border projects and high-stakes operations. The design complements Eaton’s Crouse-Hinds portfolio, with readily available installation instructions (IF 596) and specification sheets that accelerate project timelines. Lightweight at 0.74 lb, it reduces weight burden on overhead supports while delivering dependable performance in ordinary locations. Catalog pages and datasheets support easy ordering and compatibility checks.
Get a Quick Quote for a Eaton LCC4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCC4?
Enquire Now
FAQs
The LCC4 is designed for use with outside rail cable tray systems and accommodates a 1-1/4 inch trade size. Its cast iron body provides robust support across common outside-rail configurations found in industrial facilities, reducing the need for adapters and simplifying field installation. Always verify rail dimensions against your tray catalog to ensure a clean, secure fit.
The LCC4 is aligned with NEC/CEC standards and is suitable for ordinary/non-hazardous locations. It carries UL Canada certification for reliability and safety, helping support cross-border projects. This combination of standards and certifications provides regulatory confidence while the durable cast iron construction supports long service life in demanding environments.
Ideal for industrial facilities with outside rail cable tray systems, including manufacturing, data centers, and process plants. The 1-1/4 inch trade size covers a common cabling footprint, while the cast iron build withstands exposure to vibration and moderate mechanical stress. It also suits installations requiring NEC/CEC compliance and non-hazardous location ratings.
Compliance with NEC/CEC standards and ordinary location ratings helps meet regional electrical codes. Installation is aided by readily available resources such as IF 596 instruction sheets and Eaton specification pages, which reduce field errors and accelerate project timelines. The clamp’s standard sizing minimizes the number of unique parts needed, lowering procurement complexity.
Leverage the IF 596 installation sheet and the Eaton specification pages to verify the 1-1/4 inch trade size and outside rail compatibility before mounting. Use proper torque on mounting screws to prevent loosening from vibration, and plan for future expansions by stocking the same clamp in additional sizes if your tray system evolves. The 0.74 lb weight aids in overhead support planning.
