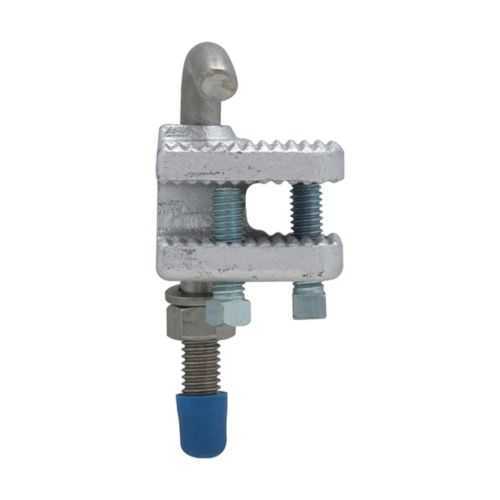

Eaton LCC5 Cable Tray Conduit Clamp - NEC/CEC
Part Number: LCC5
Quick Summary
The Eaton LCC5 cable tray conduit clamp securely attaches 1-1/2" outside rail trays in industrial electrical installations. This solution addresses field challenges like premature wear, corrosion, and non-compliant mounting that can derail projects. Built for ordinary and non-hazardous locations, it carries NEC/CEC compliance and UL certification for US and Canada, giving engineers confidence during audits. Cast iron construction delivers rugged durability in demanding environments, while the 1-1/2" trade size ensures compatible integration with standard outside rail tray systems. Using LCC5 reduces maintenance downtime, simplifies assembly, and supports fast BOM reconciliation, translating to lower total cost of ownership and more reliable tray management for lighting and emergency systems.
Product Information
Extended Description
LCC5 Eaton: Eaton Crouse-Hinds series LCC cable tray conduit clamp, Cast iron, 1-1/2", For use with outside rail tray
Product Name
Eaton Crouse-Hinds series LCC cable tray conduit clamp
Catalog Number
LCC5
UPC
782274128665
Product Length/Depth
2.69 in
Product Height
4.81 in
Product Width
2.69 in
Product Weight
1.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with outside rail tray
Trade size
1-1/2"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps UL certification
LCC Cable Tray Conduit Clamps UL certification
IF 596 - LCC Cable Tray Conduit Clamps
Eaton Specification Sheet - LCC5
Feature: Cast iron construction Provides rugged durability and resistance to mechanical wear in demanding environments. Business Impact: Reduces maintenance costs and extending service life for cable tray assemblies. Application: Ideal for outdoor or semi-enclosed industrial spaces using outside rail tray clamps. Feature: 1-1/2" trade size Ensures broad compatibility with common outside rail tray systems. Business Impact: Streamlines procurement and reduces on-site adaptation time. Application: Fits standard ladder and tray configurations without custom adapters. Feature: Code-compliant design NEC/CEC with UL certification in US/Canada Provides certified safety and regulatory alignment. Business Impact: Lowers audit risk and accelerates project approval. Application: Used in lighting and emergency system installations where compliance matters. Feature: Defined dimensions and weight 2.69 in length/width, 4.81 in height, 1.85 lb weight Enables precise planning. Business Impact: Facilitates accurate space budgeting and enclosure fit. Application: Mounting on fixed supports with predictable clearances. Feature: Cataloged as LCC5 with outside-rail tray capability Facilitates easy BOM integration. Business Impact: Reduces sourcing time and ensures consistent performance. Application: Part of Eaton Crouse-Hinds LCC family for reliable tray management.
Get a Quick Quote for a Eaton LCC5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCC5?
Enquire Now
FAQs
Yes. LCC5 is designed specifically for 1-1/2" outside rail trays and uses a cast-iron construction that aligns with standard tray systems. Its 2.69" length and 2.69" width support straightforward mounting on common support structures, reducing the need for adapters and speeding up installation time in industrial facilities.
LCC5 measures 2.69 inches in length and width, with a height of 4.81 inches, and weighs 1.85 pounds. Made from cast iron, this clamp delivers robust mechanical strength while maintaining a compact profile suitable for tight tray arrangements in electrical rooms and outdoor enclosures.
LCC5 complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. It is UL-certified for both the US and Canada, providing verification of safety and performance for code-compliant tray installations in commercial and industrial settings.
Yes. The product is specified for Ordinary/Non-Hazardous Locations, aligning with typical lighting and emergency-system installations. This classification ensures appropriate performance without the need for explosion-proof or high-hazard-rated hardware in standard plant environments.
installation instructions and datasheets are available through Eaton’s resources, including IF 596 instruction sheets and the LCC5 specification page. Additionally, catalog pages and UL certification references provide guidance for safe mounting, regulatory compliance, and BOM integration during project planning.
