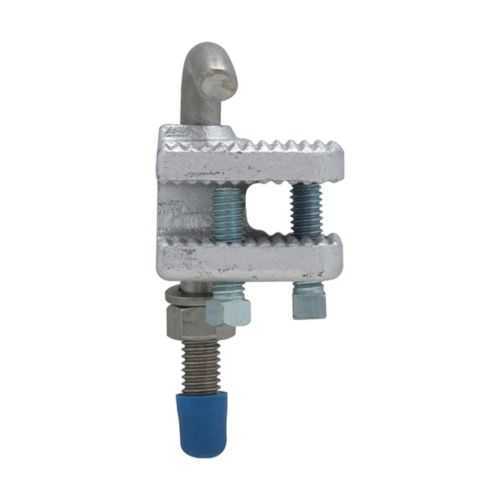

Eaton LCCF010 Cable Tray Conduit Clamp - 4 in Cast Iron
Part Number: LCCF010
Quick Summary
The Eaton LCCF010 Cable Tray Conduit Clamp provides a robust fastening solution for inside-rail cable tray systems in industrial facilities. Engineers rely on clamps that fit exact tray dimensions and install quickly, avoiding rework and field adjustments. This clamp meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, reinforcing safety and compliance across plants. By combining rugged cast iron with straightforward mounting, it delivers predictable lifecycle performance while aligning with common cable-management and installation workflows. Whether upgrading legacy layouts or deploying new infrastructure, the 4 in trade-size design reduces inventory complexity and supports scalable, compliant wiring installations across facilities.
Product Information
Extended Description
LCCF010 Eaton: Eaton Crouse-Hinds series LCCF cable tray conduit clamp, Cast iron, 4", For use with inside rail tray
Product Name
Eaton Crouse-Hinds series LCCF cable tray conduit clamp
Catalog Number
LCCF010
UPC
782274130989
Product Length/Depth
3.69 in
Product Height
7.75 in
Product Width
3.69 in
Product Weight
3.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with inside rail tray
Trade size
4"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps Canadian certification
LCC Cable Tray Conduit Clamps Canadian certification
IF 721 - LCCF Cable Tray Conduit Clamps
Eaton Specification Sheet - LCCF010
Feature: Cast iron construction. Business impact: exceptional durability and wear resistance in standard industrial environments. Application: interior rail tray clamps that endure vibration and load without deformation, delivering long-term reliability. Feature: 4 inch trade size. Business impact: standardization reduces procurement complexity and field-fitting time. Application: widely used in electrical distribution within panels and tray systems. Feature: Compact yet robust dimensions (3.69 in length/depth, 7.75 in height, 3.69 in width) and 3.4 lb weight. Business impact: easier handling, faster mounting, and compatibility with existing installation fixtures. Application: tight spaces and overhead runs where precise fit matters. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location designation. Business impact: ensures code-compliant installations and safer operation. Application: plant floors and non-hazardous interiors with standard cable trays. Feature: Access to installation resources (IF 721 instructions, catalogs, datasheet). Business impact: reduces misassembly and speeds commissioning. Application: field teams benefiting from clear guidance and verified specs. Feature: Part of the Eaton Crouse-Hinds ecosystem. Business impact: seamless integration with LCC accessories for scalable cable management. Application: multi-clamp systems across evolving facilities needing consistent hardware. Industry context: organizations adopting cast-iron clamps in non-hazardous zones improve uptime and simplify maintenance planning, while maintaining compliance with NEC/CEC standards.
Get a Quick Quote for a Eaton LCCF010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCCF010?
Enquire Now
FAQs
Install the LCCF010 by aligning the clamp with standard inside-rail trays, securing it with compatible fasteners, and ensuring the clamp sits firmly against the tray surface. Use the IF 721 installation sheet for step-by-step guidance, torque recommendations, and clearance requirements to avoid over-tightening and ensure a reliable hold in non-hazardous environments.
Key specs include a 4 inch trade size, cast iron material, product length/depth of 3.69 in, height 7.75 in, width 3.69 in, and weight 3.4 lb. Catalog number LCCF010, UPC 782274130989, NEC/CEC standards, and area classification Ordinary/Non-Hazardous Locations. These details ensure correct fit and code compliance in installations.
Yes. LCCF010 is certified for NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This makes it appropriate for most non-hazardous industrial facilities and commercial spaces where inside-rail tray systems are used, supporting compliant and safe cable management.
LCCF010 is designed for use with inside-rail tray systems in Eaton’s LCC family. While it is optimized for Eaton components, it can be suitable with compatible inside-rail trays that share similar dimensions and mounting patterns. Always confirm tray dimensions and fastener compatibility to avoid fitment issues.
The cast-iron construction delivers long service life with minimal maintenance, reducing replacement intervals and downtime. Standardized 4 inch trade size simplifies stocking and reduces installation errors. Over the life of the system, the clamp supports reliable cable management, lowers servicing costs, and improves uptime in non-hazardous plant areas.
