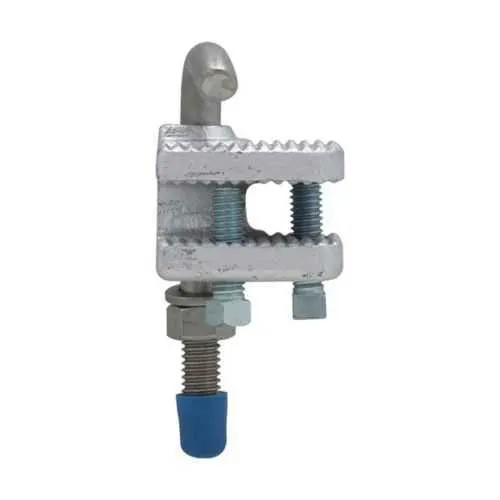

Eaton LCCF4 Cable Tray Conduit Clamp - NEC/CEC
Part Number: LCCF4
Quick Summary
Introducing the Eaton LCCF4 Cable Tray Conduit Clamp for secure, durable conduit support in inside rail tray systems. This clamp secures cables and conduits quickly, reducing install time and field adjustments for rugged industrial environments. Built for ordinary/non-hazardous locations, it carries NEC/CEC compliance with cast iron construction rated for long service life and consistent performance. The 1-1/4" trade size ensures compatibility with common tray hardware while the compact form fits tight panels and crowded electrical rooms. By combining durability with reliable installation, LCCF4 helps maintain high uptime, reduces maintenance calls, and supports scalable cable management in manufacturing, mining, and process facilities.
Product Information
Extended Description
LCCF4 Eaton: Eaton Crouse-Hinds series LCCF cable tray conduit clamp, Cast iron, 1-1/4", For use with inside rail tray
Product Name
Eaton Crouse-Hinds series LCCF cable tray conduit clamp
Catalog Number
LCCF4
UPC
782274130927
Product Length/Depth
1.63 in
Product Height
3.94 in
Product Width
1.63 in
Product Weight
0.871 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with inside rail tray
Trade size
1-1/4"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps Canadian certification
LCC Cable Tray Conduit Clamps Canadian certification
IF 721 - LCCF Cable Tray Conduit Clamps
Eaton Specification Sheet - LCCF4
Cast iron construction delivers enduring strength and heat resistance, helping the clamp resist wear in vibration-prone environments. This translates to lower maintenance costs and fewer field adjustments, especially in busy product lines and harsh facilities. Business impact: improved reliability and reduced downtime; Application: inside rail tray installations across industrial plants. The 1-1/4 inch trade size aligns with standard cable tray hardware, minimizing the need for adapters and streamlining procurement. Business impact: faster installation and fewer part-count errors; Application: retrofits and new builds using common trays. NEC/CEC compliance and Ordinary/Non-Hazardous location suitability simplify regulatory adherence and insurance considerations during audits and commissioning. Business impact: lower compliance risk and smoother project sign-offs; Application: plant-wide electrical installations in warehouses, factories, and logistics hubs. Compact dimensions (1.63 in width/depth and 3.94 in height) with a light 0.871 lb weight enable easier handling and mounting in tight spaces. Business impact: reduced labor time and safer handling; Application: congested electrical rooms and overhead trays. Official installation resources, including IF 721 instruction sheets and the Eaton specification sheet for LCCF4, support correct mounting and faster commissioning. Business impact: fewer installation errors and repeat site visits; Application: field deployments and training workflows. Industry insight: compatibility with Eaton’s Crouse-Hinds LCC family enhances standardization of cable management solutions, easing maintenance and future scalability across multiple facilities.
Get a Quick Quote for a Eaton LCCF4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCCF4?
Enquire Now
FAQs
LCCF4 is designed for use with inside rail tray assemblies and matches a 1-1/4" trade size, ensuring straightforward mounting on standard trays and minimizing the need for adapters.
Key specs include a 1-1/4" trade size, cast iron body, 1.63 in length and width, 3.94 in height, and a 0.871 lb weight. These dimensions enable quick handling and secure mounting, reducing on-site installation time and rework.
Yes. It is rated for Ordinary/Non-Hazardous locations and meets NEC/CEC standards, making it appropriate for typical industrial facilities, warehouses, and production floors.
LCCF4 aligns with NEC/CEC standards and is intended for ordinary/non-hazardous locations, supporting compliant electrical installations and consistent performance.
Installation benefits come from factory-proven dimensions and official guidance such as IF 721 and the LCCF4 spec sheet, reducing errors and labor time, improving uptime, and lowering maintenance costs over the system’s life.
