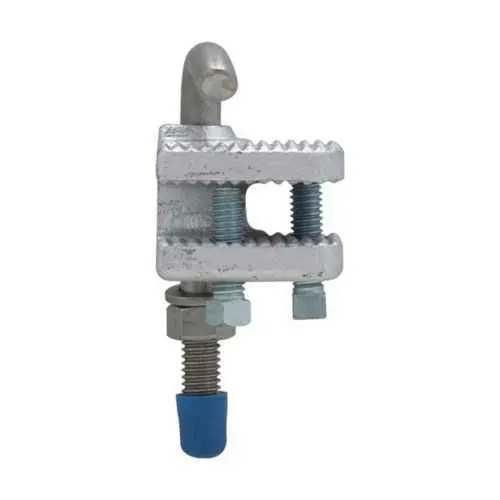

Eaton LCCF5 Cable Tray Conduit Clamp - NEC/CEC
Part Number: LCCF5
Quick Summary
Eaton Crouse-Hinds LCCF5 cable tray conduit clamp securely anchors conduits to inside rail trays in industrial installations. This design addresses common installation pain points such as misfit hardware and time-consuming alignment by delivering a precise, purpose-built fit. It aligns with NEC and CEC standards and carries an ordinary/non-hazardous area classification, with UL certification documentation available for US and Canada. For value, the clamp pairs robust cast-iron durability with straightforward installation, ensuring long-term reliability in power distribution panels and automation cabinets. Its compact form supports tight panel layouts and consistent conduit routing, while the 1-1/2 inch trade-size compatibility provides clear, scalable performance across standard electrical installations.
Product Information
Extended Description
LCCF5 Eaton: Eaton Crouse-Hinds series LCCF cable tray conduit clamp, Cast iron, 1-1/2", For use with inside rail tray
Product Name
Eaton Crouse-Hinds series LCCF cable tray conduit clamp
Catalog Number
LCCF5
UPC
782274130934
Product Length/Depth
2.75 in
Product Height
4.75 in
Product Width
2.75 in
Product Weight
1.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with inside rail tray
Trade size
1-1/2"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps UL certification
LCC Cable Tray Conduit Clamps UL certification
IF 721 - LCCF Cable Tray Conduit Clamps
Eaton Specification Sheet - LCCF5
Cast iron construction delivers high strength and long service life, withstanding mechanical stress and vibration in demanding facilities. Business impact: reduces replacement costs and downtime, improving maintenance efficiency. Application: ideal for inside rail tray installations in manufacturing, data centers, and process plants. The 1-1/2 inch trade size ensures a precise fit for standard conduits, minimizing movement and misalignment. Business impact: faster wiring runs and fewer field adjustments. Application: panel feeders and equipment racks in automation environments. Compact dimensions and a weight of 1.85 lb enable easier handling during installation and servicing, boosting on-site productivity. Application: crowded control panels and cable raceways. Compliance with NEC/CEC and ordinary/non-hazardous area classification supports regulatory approvals and safe operation. Application: general industrial environments with stringent wiring expectations. Documentation such as catalogs, installation sheets (IF 721), and datasheets streamline procurement and field specification processes. Application: engineering and procurement workflows seeking clear, actionable reference material.
Get a Quick Quote for a Eaton LCCF5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCCF5?
Enquire Now
FAQs
LCCF5 is designed for inside rail tray systems with a 1-1/2" trade-size conduit. Installers should use standard mounting provisions compatible with Eaton Crouse-Hinds LCC clamps and refer to IF 721 instructions for specific step-by-step mounting guidance. The clamp’s dimensions and weight (2.75 in L, 2.75 in W, 4.75 in H, 1.85 lb) support straightforward assembly in confined panels.
Key specs include a 1-1/2 inch trade size, cast-iron material, and overall dimensions of 2.75 in length and width with a 4.75 in height, plus a carrier weight of 1.85 lb. These factors yield a precise, robust fit that minimizes rework, reduces panel area conflicts, and accelerates routing and securing of conduits in standard electrical cabinets.
LCCF5 is suitable for ordinary/non-hazardous locations, aligning with NEC/CEC requirements. It is ideal for power distribution panels, automation cabinets, and industrial control areas where reliable conduit management is needed without exposure to hazardous environments. Its cast-iron construction adds durability in vibration-prone installations and busy manufacturing floors.
The LCCF5 clamp adheres to NEC/CEC standards and is intended for ordinary/non-hazardous locations. UL certification documents are available via downloadable pages in Eaton’s catalog and UL databases, with pages for US and Canada. Accessing these documents supports compliance verification during design reviews and commissioning.
Choosing LCCF5 delivers lifecycle benefits through durable cast-iron reliability, reduced maintenance intervals, and predictable performance in vibration-prone environments. The precise 1-1/2 inch fit minimizes field adjustments, speeds panel assembly, and lowers total installed cost by reducing rework, procurement delays, and documentation gaps in large automation or processing plants.
