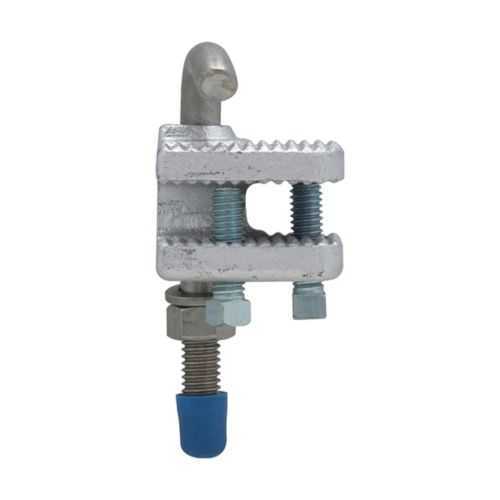

Eaton LCCF7 Cable Tray Conduit Clamp - NEC/CEC
Part Number: LCCF7
Quick Summary
LCCF7 Cable Tray Conduit Clamp from Eaton secures conduit to inside-rail trays in industrial facilities. Engineers frequently grapple with loose fittings that lead to misalignment, vibration, and downtime. This clamp carries NEC/CEC compliance and UL certification for US and Canada, ensuring code-conforming performance in ordinary locations. With cast-iron construction, a 2-1/2 inch trade size, and a compact footprint, it delivers reliable support without crowding crowded trays. When paired with Eaton’s LCC series, it simplifies installation, reduces maintenance, and improves lifecycle cost across harsh production environments.
Product Information
Extended Description
LCCF7 Eaton: Eaton Crouse-Hinds series LCCF cable tray conduit clamp, Cast iron, 2-1/2", For use with inside rail tray
Product Name
Eaton Crouse-Hinds series LCCF cable tray conduit clamp
Catalog Number
LCCF7
UPC
782274130958
Product Length/Depth
2.75 in
Product Height
5.75 in
Product Width
2.75 in
Product Weight
2.025 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with inside rail tray
Trade size
2-1/2"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps UL certification
LCC Cable Tray Conduit Clamps UL certification
IF 721 - LCCF Cable Tray Conduit Clamps
Eaton Specification Sheet - LCCF7
Feature: Cast iron construction provides robust mechanical strength and reduced deformation under load. Business Impact: Delivers long service life in demanding indoor environments, minimizing replacement cycles and downtime. Application: Suitable for heavy-duty conduit support on inside-rail tray systems in manufacturing facilities. Feature: 2-1/2 inch trade size compatibility ensures standard conduit fit. Business Impact: Improves installation speed and consistency, lowering procurement complexity and training needs. Application: Ideal for common wiring methods and NEC/CEC-compliant installations. Feature: Dimensions of 2.75 in length, 2.75 in width, and 5.75 in height create a compact, space-efficient clamp. Business Impact: Maximizes tray density while maintaining accessible work areas, boosting cable management efficiency. Application: Fits tight panels and crowded plant floors where space is at a premium. Feature: Ordinary/Non-Hazardous area classification aligns with typical plant environments. Business Impact: Enables broad deployment without special enclosure requirements, reducing project risk. Application: Suitable for general manufacturing rooms and non-hazardous locations. Feature: NEC/CEC standards compliance and UL certification (US and Canada). Business Impact: Ensures regulatory conformity, enhances safety, and supports pass-through audits. Application: Required for code-compliant electrical installations in North American facilities. Feature: Cast iron material and compatibility with inside rail trays. Business Impact: Provides dependable support and compatibility across Eaton LCC components, reducing integration concerns. Application: Fastens securely to inside rail tray systems for durable conduit management.
Get a Quick Quote for a Eaton LCCF7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCCF7?
Enquire Now
FAQs
The LCCF7 is designed for use with inside rail trays and comes in a 2-1/2 inch trade size. To install, align the clamp with the tray rail, place the conduit, and secure with appropriate fasteners as specified in the IF 721 installation sheet. The accessory is compatible with standard Eaton LCC fittings and supports NEC/CEC-compliant installations in ordinary locations.
LCCF7 supports a 2-1/2" trade size and is made from cast iron, offering robust mechanical strength to resist vibration and mechanical shocks. The 2.75" length and 5.75" height provide rigid clamping while maintaining a compact footprint for dense cable tray layouts. This combination improves reliability, reduces maintenance intervals, and maintains alignment in harsh indoor environments.
Yes. LCCF7 is specified for Ordinary/Non-Hazardous Locations and meets NEC/CEC standards, making it suitable for typical plant floors, assembly areas, and other non-hazardous indoor spaces. UL certification for both US and Canada further validates its suitability for regulated environments.
LCCF7 carries NEC/CEC standards compliance and UL certification for the US and Canada, indicating code alignment and safety. It’s also specified for ordinary locations, ensuring it meets common industrial electrical installation requirements without additional enclosure constraints.
The cast-iron construction and robust design reduce replacement intervals, helping to minimize downtime and maintenance labor. Its compatibility with inside-rail trays streamlines installation, while NEC/CEC and UL certifications simplify compliance audits, delivering lower total cost of ownership over the system’s life.
