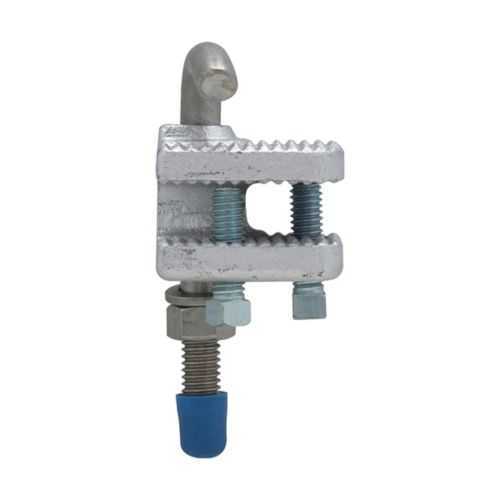

Eaton LCCF8 Cable Tray Conduit Clamp - NEC/CEC
Part Number: LCCF8
Quick Summary
The Eaton LCCF8 Cable Tray Conduit Clamp is a rugged, cast-iron solution designed for inside-rail tray systems in industrial facilities. Installers often struggle with clamps that don’t align with 3-inch rails or that loosen under vibration, risking wire damage and downtime. This clamp meets NEC/CEC standards and supports ordinary/non-hazardous locations, with Canadian UL certification documentation available to streamline audits and approvals. Its 3-inch trade size and durable construction deliver reliable performance with minimal maintenance, while a compact footprint simplifies mounting in tight panels and electrical rooms. For procurement teams, LCCF8 helps consolidate parts for inside-rail trays, reducing inventory complexity and accelerating project timelines.
Product Information
Extended Description
LCCF8 Eaton: Eaton Crouse-Hinds series LCCF cable tray conduit clamp, Cast iron, 3", For use with inside rail tray
Product Name
Eaton Crouse-Hinds series LCCF cable tray conduit clamp
Catalog Number
LCCF8
UPC
782274130965
Product Length/Depth
3.69 in
Product Height
6.75 in
Product Width
3.69 in
Product Weight
3.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with inside rail tray
Trade size
3"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps Canadian certification
LCC Cable Tray Conduit Clamps Canadian certification
IF 721 - LCCF Cable Tray Conduit Clamps
Eaton Specification Sheet - LCCF8
Feature → Business Impact → Application: Cast-iron construction provides outstanding rigidity and long service life in demanding industrial environments, reducing replacement costs and downtime. This durability translates to fewer field service calls and lower total cost of ownership for inside-rail tray clamps used in power distribution and control panels. Feature → Business Impact → Application: 3-inch trade size ensures compatibility with standard inside-rail tray systems, minimizing the need for adapters or custom hardware while speeding up installation in new builds or retrofits. Feature → Business Impact → Application: Precise dimensions (3.69 in length and width, 6.75 in height) yield a reliable fit and predictable spacing, facilitating clean cable routing and compliant enclosures in control rooms and plant floors. Feature → Business Impact → Application: NEC/CEC compliance and ordinary/non-hazardous location classification provide clear regulatory alignment, reducing project risk and accelerating approvals at both local and international sites. Feature → Business Impact → Application: Availability of IF 721 installation guidance and catalog pages supports faster commissioning, reduces training time for technicians, and improves first-time-right installs. Feature → Business Impact → Application: Documented Canadian certification availability enhances cross-border procurement and supplier confidence, helping maintenance teams standardize on a single clamp across multiple sites.
Get a Quick Quote for a Eaton LCCF8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCCF8?
Enquire Now
FAQs
The LCCF8 is designed for use with inside rail tray systems, using a 3 inch trade size to securely clamp conduit to the tray. Its cast-iron body provides rigidity and consistent mounting, ensuring reliable alignment with standard rail profiles used in industrial control panels.
LCCF8 is NEC/CEC compliant and intended for ordinary/non-hazardous locations. Canadian certification documents are available via UL-listed pages referenced in Eaton’s certification resources, and installation sheets such as IF 721 accompany the product ecosystem for compliant installations.
No. The product is classified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards for non-hazardous indoor installations. For outdoor or hazardous environments, select clamps rated for such conditions with appropriate ingress protection ratings.
Installation guidance is provided via the IF 721 instruction sheet and Eaton’s catalog pages. These documents cover mounting methods, rail alignment, and torque considerations to ensure first-time-right installation and reliable long-term performance.
The clamp supports a 3 inch trade size with a footprint of 3.69 in length by 3.69 in width and a height of 6.75 in, weighing approximately 3.35 lb. These specs help design bays and panels with precise cable routing and space planning.
