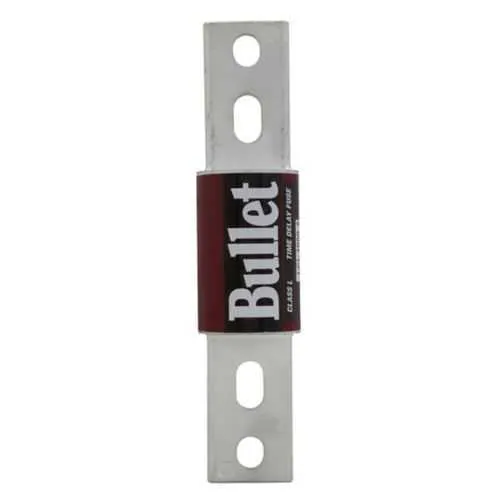

Eaton LCL1000 Edison Fuse - 200 kAIC, Class L
Part Number: LCL1000
Quick Summary
The Eaton Edison LCL fuse protects industrial power feeders by interrupting faults in low‑voltage, high‑current circuits. In practice, engineers often struggle to select a device that combines high interrupt capability with a compact, bolt‑mounted installation while still meeting RoHS and safety standards. This fuse delivers CSA Certified, UL Listed, and RoHS Compliant compliance, simplifying cross‑region approvals. With a 1000 A amperage rating, 200 kAIC interrupt rating, and 600 V voltage rating, it supports reliable protection in power distribution and motor feeder applications, while the non‑indicating design reduces unnecessary maintenance checks. The result is improved uptime, straightforward procurement, and a safer, compliant protection solution for industrial environments.
Product Information
Extended Description
LCL1000 Eaton: Eaton Edison LCL fuse, Non-indicating, 1000 A, Class L, 200 kAIC, Copper link fuses, Bolt, Standard, 1, 600 V
Product Name
Eaton Edison LCL fuse
Catalog Number
LCL1000
UPC
782634605102
Product Length/Depth
10.75 in
Product Height
2.78 in
Product Width
2.78 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed
Amperage Rating
1000 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Copper link fuses
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Feature → Business Impact → Application The 1000 A amperage rating with a 200 kAIC interrupt rating ensures rapid fault clearance, reducing arc flash exposure and protecting downstream equipment in critical production lines. This translates to lower downtime and safer plant operation in manufacturing and process facilities, particularly in panels and feeders using copper link fuses. Feature → Business Impact → Application The 600 V electrical rating enables compatibility with common industrial distribution systems, allowing seamless integration into existing switchgear and control architectures without overrating circuits. This supports cost-efficient upgrades and compliant protection in facility modernization projects. Feature → Business Impact → Application Copper link fuses deliver high conductivity and fast response, improving protection reliability in high‑inrush environments such as motor feeders and process lines. Application includes bolt mounting and standard packaging, which simplifies on-site installation, reduces commissioning time, and supports easy future maintenance. Feature → Business Impact → Application The Class L, non‑indicating design minimizes visual maintenance while offering robust protection; RoHS compliance and UL/CSA certifications provide regulatory confidence for global operations, aiding supplier qualification and procurement workflows. Feature → Business Impact → Application With a compact form factor and standard packaging, the LCL1000 fits tight panels and crowded distribution boards, enabling scalable protection strategies across multiple feeders in industrial plants.
Get a Quick Quote for a Eaton LCL1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCL1000?
Enquire Now
FAQs
The LCL1000 is designed to protect industrial power feeders and distribution panels by interrupting faults in high‑current, low‑voltage circuits. It is well suited for motor feeders and panel protection in manufacturing and process environments.
The LCL1000 provides a 1000 A amperage rating, a 200 kAIC interrupt rating, and a 600 V voltage rating. It uses copper link fuses, is non-indicating, and mounts via bolt connections for secure installation.
Yes. The LCL1000 is RoHS compliant and CSA Certified, UL Listed, ensuring regulatory alignment for North American facilities and helping streamline supplier qualification.
The LCL1000 uses bolt mounting and comes in standard packaging. It is available as a single unit, which simplifies replacement and down‑the‑line maintenance in crowded switchgear and panels.
Industries such as manufacturing, material handling, and process plants benefit from its high interrupt rating and robust protection in motor control circuits, feeders, and power distribution panels, enabling high uptime and regulatory compliance.
