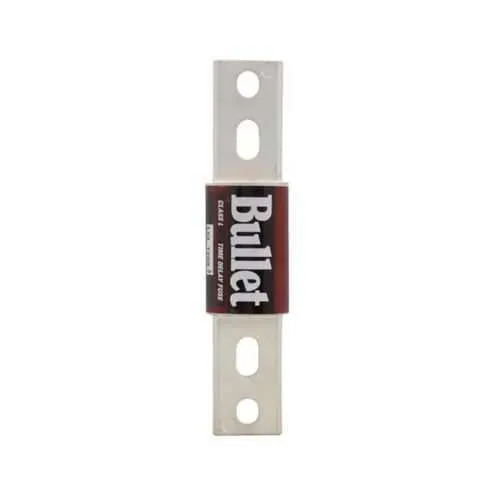

Eaton LCL1200 Fuse - Class L, 200 kAIC, 600 V
Part Number: LCL1200
Quick Summary
The Eaton LCL1200 fuse provides high-current protection for industrial power distribution systems. Engineers often face nuisance trips, ambiguous fault signals, and costly downtime when protection does not match system demands. UL Listed and CSA Certified, RoHS compliant, this device supports safe, regulator-ready installations across manufacturing facilities. With bolt-on mounting and a 600 V rating, it shortens installation time, reduces wiring complexity, and delivers Class L protection for large feeders.
Product Information
Extended Description
LCL1200 Eaton: Eaton Edison LCL fuse, Non-indicating, 1200 A, Class L, 200 kAIC, Copper link fuses, Bolt, Standard, 1, 600 V
Product Name
Eaton Edison LCL fuse
Catalog Number
LCL1200
UPC
782634605126
Product Length/Depth
10.75 in
Product Height
2.78 in
Product Width
2.78 in
Product Weight
3.75 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
1200 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Copper link fuses
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
The LCL1200 fuse combines a 1200 A amperage rating with a 200 kAIC interrupt rating to deliver robust protection for high-current feeders, minimizing equipment damage during short circuits and reducing unplanned downtime. Its copper link construction provides excellent conductivity and longevity, supporting reliable operation in demanding industrial environments. Bolt mounting ensures secure mechanical installation and straightforward field replacements, while standard packaging simplifies procurement and stocking for maintenance teams. This non-indicating design reduces potential failure points and maintenance overhead, yet remains fully compatible with 600 V systems and traditional Edison LCL configurations. Certified to UL and CSA standards and RoHS compliant, the device meets regulatory expectations and environmental requirements, enhancing overall project risk management. The packaging and build quality support rapid switchgear replacement and spare-part planning, improving total cost of ownership over the equipment lifecycle.
Get a Quick Quote for a Eaton LCL1200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCL1200?
Enquire Now
FAQs
The LCL1200 uses bolt mounting for secure, rugged installations. It ships as a standard packaging item and is intended for use with compatible Edison LCL assemblies. When replacing, ensure proper mechanical fit, verify conductor sizing for 600 V systems, and consult Eaton’s specifications for torque guidelines and panel compatibility to maintain electrical integrity.
The fuse is rated for 1200 A continuous amperage, with a 200 kAIC interrupt rating and a voltage rating of 600 V. It is a Class L non-indicating fuse with copper link construction, designed for high-current protection in industrial feeders and power distribution equipment.
Yes. The LCL1200 is designed for 600 V systems and high fault-current protection, making it suitable for motor feeders and heavy-duty power distribution. Its rugged copper link construction and bolt mounting support reliable operation in industrial environments, while UL Listed and CSA Certified status provides regulatory confidence.
The LCL1200 carries UL Listed and CSA Certified markings and RoHS compliance. These certifications verify electrical safety, performance under standardized tests, and environmental responsibility, reducing risk during design reviews and audits and simplifying procurement for regulated facilities.
The LCL1200 carries a no-warranty designation in its basic specification. For project planning, rely on Eaton’s datasheets and catalog resources for installation guidance, compatibility, and recommended replacement intervals, and coordinate with Eaton support for any site-specific implications.
