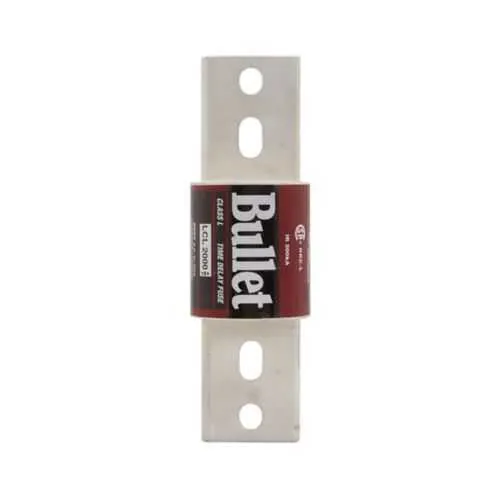

Eaton LCL2000 Edison Fuse - UL Listed, CSA Certified
Part Number: LCL2000
Quick Summary
The Eaton LCL2000 Edison fuse provides high-current protection for industrial electrical systems and main feeders. This is a non-indicating, bolt-mount fuse designed to safeguard critical power distribution without complicating visual status checks. For engineers, selecting the right fuse size can be challenging when balancing reliability and downtime risk. The LCL2000 brings UL Listed and CSA Certified compliance with RoHS conformity, supporting safe, sustainable operations. In practice, this fuse delivers robust protection at 2000 A with a 200 kAIC interrupt rating at 600 V, helping facilities meet stringent electrical protection requirements while reducing maintenance cycles and total cost of ownership. This aligns with broader reliability goals and optimizes switchgear performance in harsh industrial environments.
Product Information
Extended Description
LCL2000 Eaton: Eaton Edison LCL fuse, Non-indicating, 2000 A, Class L, 200 kAIC, Copper link fuses, Bolt, Standard, 1, 600 V
Product Name
Eaton Edison LCL fuse
Catalog Number
LCL2000
UPC
782634605201
Product Length/Depth
10.75 in
Product Height
3.53 in
Product Width
3.53 in
Product Weight
6 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
2000 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Copper link fuses
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Feature → Business Impact → Application: 2000 A amperage rating enables protection of heavy electrical loads used in continuous process industries, reducing the risk of catastrophic faults and unplanned downtime; this translates to improved line uptime and safer equipment operation in motor control centers. Application insight: use in large feeders and switchgear where peak fault current can approach several kiloamps. Feature → Business Impact → Application: 200 kAIC interrupt rating ensures high fault-current handling capacity, enabling rapid isolation of faults and protecting downstream equipment, which minimizes collateral damage and maintenance costs in power distribution networks. Application insight: ideal for data centers, metal fabrication plants, and chemical processing facilities with demanding protection needs. Feature → Business Impact → Application: Class L non-indicating copper link fuse with bolt mounting simplifies installation and reduces field service time, cutting project timelines and labor costs; compatible with standard mounting interfaces in control panels. Application insight: replace legacy fuses quickly during mid-life upgrades. Feature → Business Impact → Application: RoHS compliance and UL Listed CSA Certified framing guarantee regulatory alignment and supplier confidence, easing procurement and streamlining audit readiness in highly regulated environments. Application insight: support for compliance documentation and supplier qualification programs.
Get a Quick Quote for a Eaton LCL2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCL2000?
Enquire Now
FAQs
The LCL2000 uses bolt mounting for secure attachment in standard electrical enclosures, enabling straightforward installation alongside existing protection assemblies. This reduces installation time and minimizes compatibility issues with common switchgear, panels, and busbar configurations.
Key ratings are 2000 A amperage, 200 kAIC interrupt rating, and a 600 V voltage rating. These specifications define the fuse’s ability to protect large power circuits while safely interrupting high fault currents in industrial applications.
Yes. The LCL2000 is RoHS compliant and UL Listed with CSA Certification, aligning with global regulatory requirements and simplifying supplier qualification and compliance audits for industrial facilities.
Best suited for main feeders, switchgear, and motor control centers in manufacturing, data centers, and processing plants where high-current protection and quick fault isolation are critical to uptime and safety.
There is no warranty on the LCL2000; plan for periodic inspection of protection assemblies, verify electrical contacts, and replace with identical model if fault current conditions dictate. Its non-indicating design prioritizes reliability but requires regular panel checks for status confirmation.
