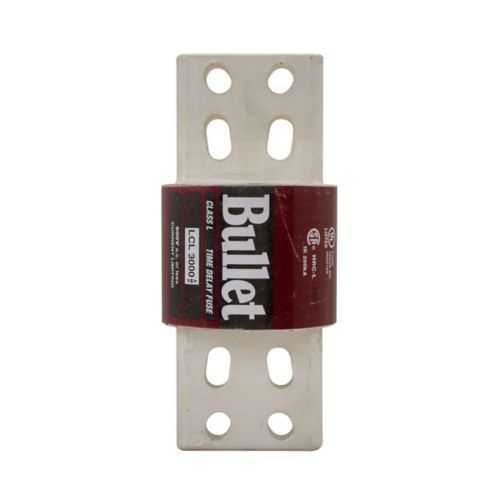

Eaton LCL3000 LCL fuse - UL Listed, CSA Certified
Part Number: LCL3000
Quick Summary
The Eaton Edison LCL fuse provides high-current overcurrent protection for industrial power distribution systems. In compact panels, sizing and coordination can be challenging, often leading to nuisance trips or unplanned downtime. This device carries UL Listed, CSA Certified, and RoHS Compliant marks, supporting global compliance and traceability. It delivers Class L protection at 600 V with a 3000 A rating, using copper link fuses for reliable heat management. For engineers responsible for panel design and maintenance, the Eaton LCL3000 offers bolt-mounted installation and standard packaging that streamline procurement, stocking, and field service, delivering measurable improvements in uptime and protective coordination across critical industrial environments.
Product Information
Extended Description
LCL3000 Eaton: Eaton Edison LCL fuse, Non-indicating, 3000 A, Class L, 200 kAIC, Copper link fuses, Bolt, Standard, 1, 600 V
Product Name
Eaton Edison LCL fuse
Catalog Number
LCL3000
UPC
782634605300
Product Length/Depth
10.75 in
Product Height
5.03 in
Product Width
5.03 in
Product Weight
8.5 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
3000 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Copper link fuses
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Feature: Amperage Rating 3000 A. Business Impact: Enables protection of high-demand feeders and bus sections, reducing risk of catastrophic faults and downtime. Application: Ideal for large industrial feeders in manufacturing floors, data centers, and switchgear banks. Feature: Interrupt Rating 200 kAIC. Business Impact: Withstands high fault currents to limit damage spreading and downtime. Application: Suitable for mains and switchgear feeders in heavy industry and process plants where fault currents can exceed standard ratings. Feature: Voltage Rating 600 V and Copper Link Construction. Business Impact: Provides robust protection under common 600 V distribution while maintaining low impedance for fast clearing. Application: 600 V AC/DC distribution networks in industrial environments and control cabinets. Feature: Material and Construction. Business Impact: Copper link fuses offer low resistance and reliable fault clearing, improving protection coordination. Application: Heavy-duty circuits in manufacturing lines and power distribution panels. Feature: Mounting Method and Packaging Type. Business Impact: Bolt mounting delivers secure installation with vibration resistance; standard packaging simplifies stocking and replacement. Application: Panelboards and switchgear assemblies in harsh industrial settings. Feature: Class L and Non-indicating Features. Business Impact: Predictable protection behavior with minimal visual indicators reduces maintenance overhead; supports easy retrofits. Application: General protection in centralized power feeds and motor control centers. Feature: Compliance Landscape. Business Impact: RoHS compliance plus UL Listed and CSA Certified marks streamline audits and multi-region deployment. Application: Global manufacturing sites and international data centers seeking standard protection devices.
Get a Quick Quote for a Eaton LCL3000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCL3000?
Enquire Now
FAQs
The LCL3000 is a bolt-mount copper-link fuse designed for secure panel installation. Begin by confirming panel ratings, power down, and isolating the circuit. Install with the appropriate bolt hardware, ensuring a tight, vibration-resistant connection. Verify continuity and clearance, then re-energize while monitoring for proper operation and clear indication of fault conditions if applicable.
The LCL3000 fuse is rated for 3000 A with a 200 kAIC interrupt rating and a 600 V voltage rating. It uses copper-link construction and is a Class L, non-indicating design. These ratings make it suitable for high-current protection in 600 V industrial power distribution networks.
Yes. The LCL3000 fuse is RoHS Compliant and UL Listed, with CSA Certification also noted in its specifications. This combination supports global regulatory compliance, safer procurement, and easier passage through regional electrical audits for industrial installations and data-center environments.
Best suited for large industrial feeders, switchgear feeders, and main distribution paths in manufacturing plants and data centers. Its 3000 A rating and 200 kAIC interrupt capability enable reliable protection for high-current circuits, while bolt mounting and Class L characteristics support durable, predictable performance in demanding environments.
The LCL3000’s non-indicating design reduces exposure to indicator drift in busy panels, simplifying maintenance. Its high interrupt rating and robust materials minimize nuisance trips and fault cascades, lowering downtime and service costs. Standard packaging and bolt mounting also streamline stocking, field replacement, and overall lifecycle management.
