Eaton LCL800 Fuse - Edison Class L 600V UL Listed
Part Number: LCL800
Quick Summary
Eaton LCL800 fuse provides reliable overcurrent protection for industrial electrical distribution. This non-indicating Edison LCL fuse is designed to interrupt faults quickly, helping keep critical processes online. When fuse failures trigger unscheduled downtime, maintenance costs and lost production follow. UL Listed, CSA Certified, and RoHS Compliant, the solution aligns with global safety and regulatory expectations. Bolt-mounted, Class L protection with an 800 A rating and 200 kAIC interrupt capability supports standardized protection across panels and switchgear, while 600 V rating covers common industrial feeders. Designed for ease of replacement and predictable coordination with upstream devices, it minimizes inventory and simplifies maintenance programs in manufacturing and processing facilities.
Product Information
Extended Description

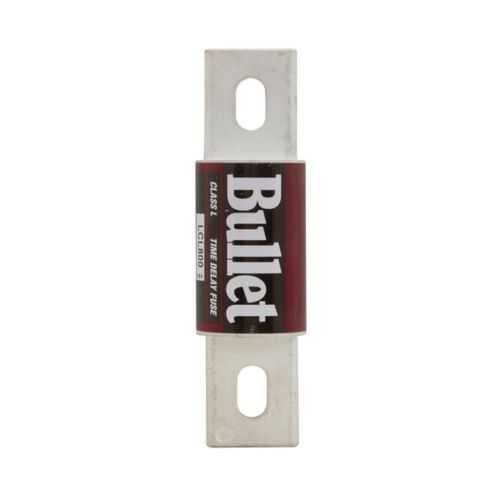

LCL800 Eaton: Eaton Edison LCL fuse, Non-indicating, 800 A, Class L, 200 kAIC, Copper link fuses, Bolt, Standard, 1, 600 V
Product Name
Eaton Edison LCL fuse
Catalog Number
LCL800
UPC
782634605089
Product Length/Depth
8.63 in
Product Height
2.39 in
Product Width
2.39 in
Product Weight
3.75 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
800 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Copper link fuses
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Feature: The LCL800 provides an 800 A amperage rating with a 200 kAIC interrupt rating at 600 V. Business impact: This combination delivers rapid fault clearing and enhanced protection for critical feeders, reducing the likelihood of cascading trips and equipment damage in high-load applications. Application: Ideal for main feeders, motor control centers, and high-current panel boards across manufacturing lines. Feature: Copper link fuses with a bolt mounting arrangement and standard packaging. Business impact: Provides robust thermal performance, straightforward installation, and dependable field replacement, reducing maintenance time and torque-related installation issues. Application: Suited for retrofit and new installations where Edison LCL components are standard. Feature: Class L non-indicating fuse to minimize visual wear and misinterpretation during routine checks. Business impact: Reduces inspection overhead and training requirements, supporting safer, quicker maintenance. Application: Widely used in distribution panels where continuous visibility isn’t essential. Feature: Certifications and compliance: UL Listed, CSA Certified, RoHS Compliant. Business impact: Regulatory readiness across North America and global operations; simplifies supplier qualification. Application: Global plants needing compliant protection solutions. Feature: Compact dimensions and weight: 8.63 in L, 2.39 in W, 2.39 in H, 3.75 lb. Business impact: Enables flexible mounting in tight spaces and crowded switchgear, reducing enclosure redesign needs. Application: Retrofit projects and new builds using Edison LCL series.
