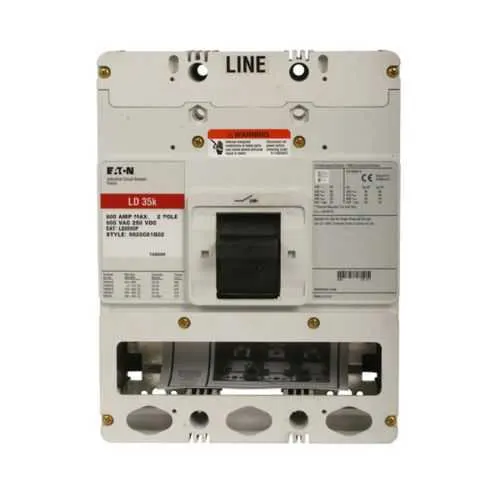

Eaton LDB2300W Complete MCCB - UL489 Series C 300A

Part Number: LDB2300W
LDB2300W
Manufacturer
Eaton
Part number
LDB2300W
Category

Quick Summary

Eaton LDB2300W is a complete molded case circuit breaker designed for reliable panel protection and motor control in industrial environments. Engineers often seek protection that fits standard enclosures without complicating installation or maintenance. UL 489 certification underpins safety and reliability, while the Series C L-frame design supports fast, predictable interrupt performance. With a 300 A rating and fixed thermal-magnetic trip, this MCCB delivers robust protection for main distribution and machine-control circuits, helping reduce downtime and extend equipment life. The product’s 50/60 Hz compatibility and compact footprint further support lean, compliant electrical distribution in manufacturing and process environments.

Product Information

Extended Description

LDB2300W Eaton: Eaton Series C complete molded case circuit breaker, L-frame, LDB, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 300A, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Without terminals, 50/60 Hz
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
LDB2300W
UPC
786679148433
Product Length/Depth
4.06 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
18 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Type
Complete breaker
Amperage Rating
300 A
Trip Type
T186
Circuit breaker type
LDB
Circuit breaker frame type
Complete breaker
Series
Series C
Terminals
Without terminals
Frame
L
Frequency rating
50 to 60 Hz
Interrupt rating
65 kAIC at 240 Vac 35 kAIC at 480 Vac
Number of poles
Two-pole
Application of Tap Rules to Molded Case Breaker Terminals Application of Tap Rules to Molded Case Breaker Terminals Application of Tap Rules to Molded Case Breaker Terminals StrandAble terminals product aid StrandAble terminals product aid StrandAble terminals product aid StrandAble terminals product aid StrandAble terminals product aid StrandAble terminals product aid StrandAble terminals product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit Breakers Explained Circuit Breakers Explained MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide
The two-pole, 300 A LDB2300W uses a fixed thermal and magnetic trip (T186) to deliver reliable overcurrent protection with fast interruption, increasing line reliability and reducing unplanned downtime in critical processes. This translates to measurable business value by protecting motors and feeders from overloads while minimizing nuisance trips in dynamic load scenarios. As part of the Series C, the L-frame complete breaker design enables straightforward panel installation and predictable mounting, supporting consistent field performance across multiple enclosure types. Compatibility with StrandAble terminals and plug-in adapters (as documented in Eaton MCCB literature) simplifies retrofit projects and spare-part planning, lowering total cost of ownership. The unit’s UL 489 certification reinforces compliance during audits and helps streamline procurement and engineering reviews. In industrial automation applications, the Eaton LDB2300W integrates smoothly with MOEM MCCB guides for accurate time-current coordination.
