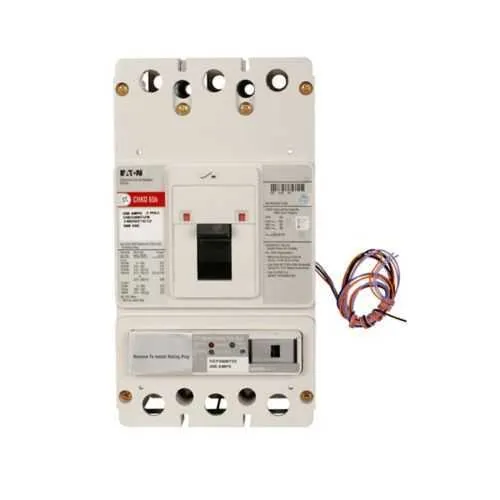

Eaton LDCB3600FT32W Molded Case Circuit Breaker - 100 kAIC

Part Number: LDCB3600FT32W
LDCB3600FT32W
Manufacturer
Eaton
Part number
LDCB3600FT32W
Category

Quick Summary

Eaton LDCB3600FT32W molded case circuit breaker protects electrical systems in industrial machinery and panel assemblies. This device helps address nuisance trips and unplanned downtime with Digitrip 310 electronic trip and LSI interchangeable settings that tailor protection to load and process conditions. In addition to UL-listed performance, Series C MCCBs are commonly evaluated for CE labeling and IP-rated enclosures in global applications, ensuring broader compliance for panel builds. The combination of rugged protection, 3-pole configuration, and compatibility with panel layouts delivers reliable distribution, easier maintenance, and scalable protection for growing manufacturing environments.

Product Information

Extended Description

LDCB3600FT32W Eaton: Eaton Series C molded case circuit breaker,Series C NEMA L-Frame Frame Unit Only,Type LDCB,Cable In/Cable Out,3-Pole,600 AMP,600 VAC,250 VDC,Digitrip 310 Electronic Trip,LSI,Without Terminals,Undervoltage Release 48-60 VDC,Factory Sealed
Product Name
Eaton Series C molded case circuit breaker
Catalog Number
LDCB3600FT32W
UPC
786679281185
Product Length/Depth
7 in
Product Height
10 in
Product Width
13 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Type
Frame only
Amperage Rating
600 A
Trip Type
LSI interchangeable
Frame size
L-frame
Series
Series C
Terminals
Without
Frame
L
Interrupt rating
100 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit breakers explained Circuit breakers explained Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers
Feature: Digitrip 310 electronic trip with LSI interchangeable protection; Business Impact: reduces nuisance trips and optimizes protection for motors and feeders; Application: motor control centers and panel boards in manufacturing lines. Feature: 100 kAIC interrupt rating at 480 VAC; Business Impact: superior fault-current handling and insulation coordination, minimizing arc energy exposure; Application: high-demand distribution networks and critical loads. Feature: Frame L, Series C, 3-pole, 600 A, 600 VAC, 250 VDC; Business Impact: robust, heavy-duty protection in compact space; Application: control panels and machine enclosures with strict current requirements. Feature: Frame Unit Only, without terminals; Business Impact: installation flexibility and simplified procurement for customized wiring schemes; Application: modular assemblies and retrofit projects. Feature: Factory sealed with a one-year warranty (or 18 months from shipment); Business Impact: reduced field maintenance and predictable total cost of ownership; Application: asset-intensive facilities seeking reliable service levels. Feature: Compatibility with circuit breaker accessories and motor operators; Business Impact: faster integration and reduced commissioning time; Application: panel upgrades and expansion projects.

Get a Quick Quote for a Eaton LDCB3600FT32W

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton LDCB3600FT32W? Enquire Now

FAQs

The LDCB3600FT32W serves as a three-pole protection solution for demanding industrial control panels and machine enclosures. With a 600 A rating and 600 VAC capability, it supports motor feeders and power distribution in manufacturing lines, ensuring reliable coordination with Series C accessories and Digitrip 310 protection settings.
Digitrip 310 provides electronic, adjustable trip curves that tailor protection to load characteristics. By distinguishing normal inrush from fault conditions, it minimizes unnecessary tripping on startup or transient faults, improving uptime for conveyors, presses, and automated tooling without compromising safety.
As a frame unit without terminals, the LDCB3600FT32W offers wiring flexibility for customer-supplied terminations or multi-wire lug configurations. Ensure compatible wiring methods and enclosure clearance, and plan for field wiring or accessory lugs that match the L-frame design to maintain reliable torque, insulation, and fault clearance.
This MCCB aligns with UL-listed performance for industrial protection, a key standard in the U.S. and many markets. While CE labeling and IP-rated enclosures are commonly sought for global deployments, verify site-specific requirements and confirm with Eaton’s documentation or local compliance teams for your exact installation.
The LDCB3600FT32W provides a predictable maintenance profile with Digitrip 310 protection and a high 100 kAIC interrupt rating, reducing unplanned downtime and arc energy exposure. Its modular frame design and compatibility with accessories simplify upgrades, lowering commissioning time and total cost of ownership in critical production lines.
