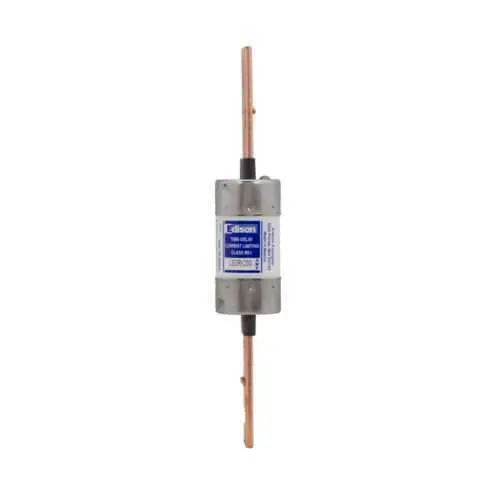

Eaton LESRK200 Edison fuse - UL Listed & CSA Certified
Part Number: LESRK200
Quick Summary
Eaton LESRK200 Edison fuse protects motors and control circuitry in industrial drives by reliably interrupting fault currents. This selection addresses the common pain point of nuisance trips from inrush and transient faults during startup. The fuse carries UL Listed and CSA Certified marks, supported by Class RK1 framing and robust high in-rush protection to meet demanding production environments. With a compact form, standardized packaging, and straightforward replacement, it delivers predictable protection without complicating panel design. For buyers targeting safety, compliance, and uptime, the LESRK200 offers a clear path to dependable motor protection and maintenance efficiency.
Product Information
Extended Description
LESRK200 Eaton: Eaton Edison LESRK fuse, Non-indicating, High in-rush current motor protection, Electrically isolated end caps, 200 A, Class RK1, 200 kAIC, Standard, 1, 600 V
Product Name
Eaton Edison LESRK fuse
Catalog Number
LESRK200
UPC
782634548508
Product Length/Depth
9.63 in
Product Height
1.61 in
Product Width
1.61 in
Product Weight
1.1 lb
Warranty
No warranty
Compliances
Not Applicable
Certifications
UL Listed CSA Certified
Amperage Rating
200 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating
Quantity
1
Special features
Non-indicating, High in-rush current motor protection
Feature → Business Impact → Application: 200 A amperage rating and 200 kAIC interrupt rating provide strong fault current interruption for motor circuits, reducing equipment damage and unplanned downtime. This translates to lower repair costs and improved line reliability in conveyors, pumps, and fans. Application-wise, users gain confidence in protecting high inrush motors without nuisance outages. Feature → Business Impact → Application: Non-indicating design simplifies visual inspection and replacement workflows, minimizing downtime during maintenance and stock management. This is especially valuable in high-volume production lines where speed matters. Feature → Business Impact → Application: Electrically isolated end caps enhance safety during installation and servicing, reducing the risk of arcing or shorts when wiring in crowded control panels. This aligns with installation best practices in standard Edison fuse holders. Feature → Business Impact → Application: 600 V voltage rating fits common industrial control circuits, ensuring compatibility with standard MCCs and motor starters. This minimizes rewiring and accelerates procurement for mixed-brand panels. Feature → Business Impact → Application: Class RK1 classification provides the appropriate protection coordination for motor feeders, ensuring selective protection and safer outage isolation in mechanical rooms. This supports compliance with motor protection guidelines. Feature → Business Impact → Application: UL Listed and CSA Certified markings streamline supplier qualification and audits, saving time during procurement and regulatory reviews. This is especially beneficial for OEMs and integrators assembling panel assemblies for diverse facilities.
Get a Quick Quote for a Eaton LESRK200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LESRK200?
Enquire Now
FAQs
The LESRK200 follows standard Edison fuse dimensions with a length of 9.63 in, width of 1.61 in, and height of 1.61 in. It fits typical 1- and 2-pole fuse panels using standard end-cap terminals and electrically isolated end caps for safer wiring in crowded control cabinets. Ensure your enclosure accepts RK1-class fuses and matches the 600 V rating for motor circuits.
Key ratings are 200 A amperage, 200 kAIC interrupt rating, and 600 V voltage rating. These specifications align with protecting medium-to-large motor feeders and inrush-heavy drives. When selecting, confirm the motor’s starting current, short-circuit current, and control voltage compatibility to ensure correct coordination with upstream breakers and starters.
Yes. The LESRK200 is designed for high inrush current motor protection and features a Class RK1 designation with non-indicating construction. This combination supports proper fuse coordination for motor starters in conveyors and pump applications, enabling quick protection action while minimizing nuisance trips during startup.
The fuse is UL Listed and CSA Certified, indicating compliance with recognized safety and performance standards. These certifications simplify supplier qualification, support regulatory audits, and provide assurance to project teams that the protection device meets industry requirements for electrical safety and reliability.
The non-indicating design reduces maintenance complexity by simplifying replacement workflows, while the compact 9.63 in length and standard packaging streamline stocking and interchangeability. Combined with high interrupt capability and robust motor protection, this can reduce unplanned downtime, extend motor life, and lower total cost of ownership in automation-driven production lines.
