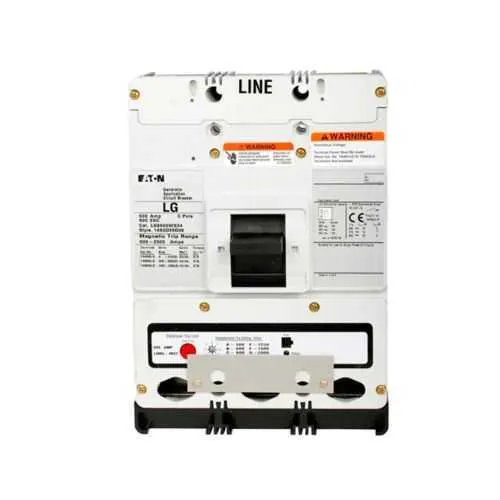

Eaton LG3450S03 MCCB - UL 489 / CSA / IEC 947-2
Part Number: LG3450S03
Quick Summary
Eaton LG3450S03 MCCB provides reliable short-circuit protection for industrial switchgear and power distribution panels. Engineers often contend with nuisance trips and challenging wiring layouts in complex systems; this unit reduces trips through precise timing and adaptable terminations. UL 489, CSA C22.2 No. 5, and IEC 947-2 certifications anchor safety, compliance, and cross-border interoperability. Built around Series C and an L-frame design, it supports three poles, a left-side shunt trip, and line-load terminals, delivering straightforward installation and dependable protection for critical assets while streamlining maintenance and test cycles.
Product Information
Extended Description
LG3450S03 Eaton: Eaton Series C complete molded case circuit breaker, L-frame, Fixed thermal, fixed magnetic trip, Three-pole, 450A, 600 Vac, Line and load, Engine generator, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed, TA450LD, TA450LD
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
LG3450S03
UPC
782113491738
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Certifications
UL 489 CSA Std. C22.2 No. 5 IEC 947-2
Amperage Rating
450 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker frame type
Complete breaker
Series
Series C
Shunt trip
12-24 Vac/dc left pigtail opposite
Terminals
Line and load
Frame
L
Class
Engine generator
Line
TA450LD
Prod load
TA450LD
Number of poles
Three-pole
Functions
Reverse
