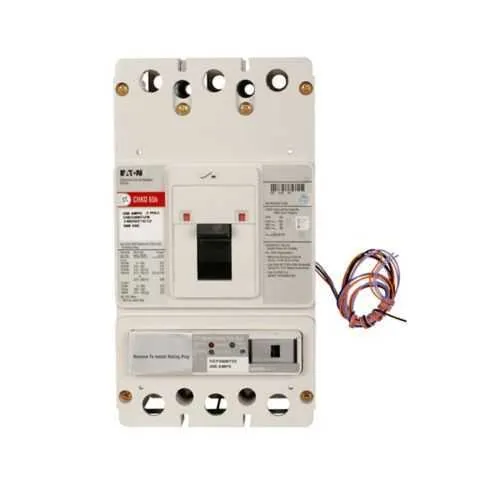

Eaton LG3500S03 Molded Case Circuit Breaker - UL Listed
Part Number: LG3500S03
Quick Summary
LG3500S03 molded case circuit breaker from Eaton provides reliable protection for generator feeds and critical power distribution in industrial settings. This MCCB helps prevent costly outages by interrupting faults quickly while allowing selective coordination with downstream devices. The unit ships with line and load terminals included and offers a 3-pole, 500 A frame for robust protection in demanding environments. With UL Listed, IEC Rated, and CSA Certified safety assurances, it supports compliance across North America and international projects. By integrating a 12-24 Vac/dc shunt trip option, operators can automate generator shut-off or remote signaling without additional hardware. The design aligns with generator protection workflows, reduces downtime, and simplifies maintenance planning for plant engineers.
Product Information
Extended Description
LG3500S03 Eaton: Eaton Series C molded case circuit breaker, LG 3P 500A Generator Breaker w/310+ Elec Trip Unit and 12-24 VAC OR DC Shunt Trip and TA602LD Terminals
Product Name
Eaton Series C molded case circuit breaker
Catalog Number
LG3500S03
UPC
782113923505
Product Length/Depth
7 in
Product Height
13 in
Product Width
11 in
Product Weight
22 lb
Certifications
UL Listed IEC Rated CSA Certified
Catalog Notes
Includes both line and load terminals
Amperage Rating
500 A
Trip Type
T29
Shunt trip
12-24 Vac/dc left pigtail opposite
Terminals
TA602LD
Frame
LG
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
StrandAble terminals product aid
StrandAble terminals product aid
StrandAble terminals product aid
StrandAble terminals product aid
StrandAble terminals product aid
StrandAble terminals product aid
StrandAble terminals product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Circuit Breakers Explained
Circuit Breakers Explained
Series C F-Frame molded case circuit breakers
Series C F-Frame molded case circuit breakers
Series C F-Frame molded case circuit breakers
Series C F-Frame molded case circuit breakers
Feature LG frame three-pole 500 A rating with T29 trip type and TA602LD terminals; Business Impact Delivers robust short-circuit protection and precise trip coordination, reducing nuisance trips and equipment damage; Application Suitable for generator feeds and critical power panels in manufacturing and utilities. Feature Includes line and load terminals; Business Impact Simplifies installation and minimizes field wiring, accelerating commissioning and improving reliability; Application Ideal for plug-and-play generator protections and panelboard upgrades. Feature 12-24 Vac/dc shunt trip option; Business Impact Enables remote shutdown and signaling for safer generator start/stop control; Application Useful in automatic generator tie-ins and safety interlocks in water, chemical, and food processing plants. Feature Certifications UL Listed, IEC Rated, CSA Certified; Business Impact Supports multi-region compliance and customer audits, easing procurement and documentation; Application Enhances regional acceptance and simplifies cross-country projects. Feature Dimensions 7 in length, 13 in height, 11 in width with a 22 lb weight; Business Impact Provides a concrete enclosure footprint for space-planning and shipping cost considerations; Application Fits compact generator rooms and control cabinets while maintaining service clearance. Feature Includes both line and load terminals; Business Impact Reduces wiring errors and improves installation time; Application Beneficial in retrofit projects and new builds where termination flexibility matters.
Get a Quick Quote for a Eaton LG3500S03
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LG3500S03?
Enquire Now
FAQs
LG3500S03 is designed for three-pole generator protection with line and load terminals included, simplifying wiring during retrofit or new installations. The TA602LD terminals support reliable connection to feeder cables, while the 12-24 Vac/dc shunt trip enables remote shutdown signals. Ensure appropriate enclosure space for its 7x11x13 inch footprint and verify compliance with UL, IEC, and CSA standards before commissioning.
LG3500S03 uses a T29 trip type with a 12-24 Vac/dc shunt trip option. The shunt trip allows remote tripping through a low-voltage signal, enhancing safety for generator startup/shutdown sequences and enabling automatic isolation during faults. Wired to a compatible control circuit, it reduces response time and improves personnel safety during maintenance or emergencies.
Yes. LG3500S03 is specified as a three-pole LG-frame MCCB with TA602LD terminals. It includes both line and load terminals, simplifying installation and reducing field wiring complexity. This compatibility supports quick integration into existing switchgear or control cabinets, while maintaining secure, code-compliant terminations for reliable operation.
LG3500S03 carries UL Listed, IEC Rated, and CSA Certified markings. These certifications indicate adherence to recognized safety and performance standards, supporting regulatory compliance, customer audits, and cross-border deployments. They provide confidence in safe operation under typical industrial conditions and facilitate procurement through established certification traceability.
The 500 A, three-pole LG-frame MCCB provides robust protection with precise trip coordination, reducing unplanned outages and delaying equipment wear. Line/load terminal inclusion streamlines installation, while the remote shunt trip option enables faster fault isolation. Collectively, these features contribute to reduced downtime, lower maintenance costs, and improved overall plant reliability.
