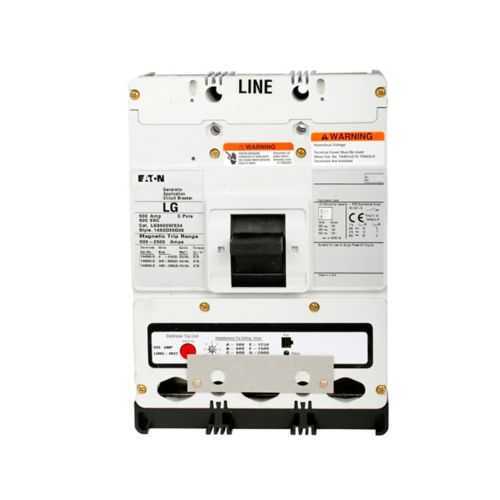

Eaton LG3500WX04Y02 Engine Generator MCCB - UL/CSA
Part Number: LG3500WX04Y02
Quick Summary
The Eaton LG3500WX04Y02 Engine Generator MCCB provides reliable protection for engine-driven power systems in industrial facilities. Operators struggle with protecting generator circuits against reverse feeds and inrush surges while meeting strict electrical codes. Certifications UL 489, CSA Std C22.2 No. 5, and IEC 947-2 ensure compliance and safety across North American and international installations. Designed for easy integration, it supports a three-pole, L-frame form factor with fixed thermal and magnetic trips and optional line or load terminals. In practice, this combination reduces downtime, simplifies maintenance, and supports scalable protection strategies, delivering predictable performance and a lower total cost of ownership for critical power systems.
Product Information
Extended Description
LG3500WX04Y02 Eaton: Eaton Series C complete EG molded case circuit breaker, L-frame, Fixed thermal and magnetic trips, 600-2500A, Three-pole, 500A, 600 Vac, No term., optional line or load, Engine generator, Reverse feed
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
LG3500WX04Y02
UPC
782116127672
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489 CSA Std. C22.2 No. 5 IEC 947-2
Amperage Rating
500 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker frame type
Complete breaker
Series
Series C
Terminals
Without terminals, optional line or load
Frame
L
Class
Engine generator
Generator rating
181 kVA/144 kW at 240 Vac, 361 kVA/289 kW at 480 Vac, 451 kVA/361 kW at 600 Vac
Number of poles
Three-pole
Trip rating
600-2500 A
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - LG3500WX04Y02
Feature: High amperage rating and broad voltage tolerance. Business Impact: The 500 A amperage rating and 600 Vac capacity tolerate industrial loads and fault events without nuisance trips, enabling reliable engine-generator protection across a wide range of genset outputs. Application: Suitable for engine-generator sets delivering up to 451 kVA at 600 Vac (and 181 kVA at 240 Vac generator ratings), making it ideal for medium to large power plants, data centers, and standby systems. Feature: Fixed thermal and magnetic trips (T186). Business Impact: Fixed trip technology provides fast, predictable fault clearance and consistent coordination with upstream protective devices, reducing arc flash risk, equipment wear, and downtime. Application: Essential for engines with high inrush and variable load profiles in manufacturing lines and critical facilities. Feature: Three-pole, L-frame, complete breaker design with line/load options. Business Impact: The three-pole configuration, compact L-frame, and optional line or load terminals simplify installation, improve wiring clarity, and enable easier retrofits in existing switchgear without major enclosure changes. Application: Ideal for engine-generator protection in compact enclosures and retrofit projects. Feature: Certifications and regulatory alignment. Business Impact: UL 489, CSA, and IEC 947-2 certification ensure code compliance, product traceability, and safer integration in diverse geographic regions. Application: Suitable for global deployment in facilities requiring strict electrical protection standards. Feature: Generator-specific functionality and rugged construction. Business Impact: Reverse feed capability and engine-generator class ratings help you manage standby and emergency power confidently, while the Series C complete breaker with L-frame supports durable performance under rugged industrial conditions. Application: Used in standby power systems and industrial facilities with generator-driven loads. Feature: Warranty and lifecycle considerations. Business Impact: A one-year warranty from purchase or 18 months from shipment reduces risk and supports predictable maintenance planning. Application: North American procurement programs seeking reliable post-sale support for critical power protection equipment.
Get a Quick Quote for a Eaton LG3500WX04Y02
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LG3500WX04Y02?
Enquire Now
FAQs
LG3500WX04Y02 is designed for standard engine-generator enclosures using a three-pole, L-frame molded case protection. It supports optional line or load terminals and fixed trips, simplifying installation in common switchgear footprints. When selecting a replacement, evaluate enclosure space, terminal configuration, and panel clearances to ensure a clean retrofit with minimal field wiring and downtime.
Key specs include a 500 A amperage rating, 600 Vac voltage rating, three-pole configuration, and a generator rating range up to 181 kVA at 240 Vac, 361 kVA at 480 Vac, and 451 kVA at 600 Vac. The T186 fixed trip provides thermal and magnetic protection, while the Series C frame and L-frame orientation optimize mounting stability and upstream coordination.
Yes, LG3500WX04Y02 provides reverse feed functionality as part of its protection features. This supports engine-generator configurations where power can be routed back toward the utility during transfer operations. Always confirm compatibility with your transfer scheme and wiring sequence to ensure safe energization control.
LG3500WX04Y02 carries UL 489, CSA Std C22.2 No. 5, and IEC 947-2 certifications, indicating compliance with North American and international electrical protection standards. These approvals support safe integration, simplify procurement for regulated projects, and assist in commissioning and safety audits across diverse facilities.
Eaton provides a warranty per policy 25-000, offering one year from the installation date or eighteen months from shipment, whichever occurs first. This coverage complements typical industrial maintenance cycles, enabling planned service, easier budgeting, and access to post-sale support for engine-generator protection equipment.
