Eaton LG3600S02 Molded Case Circuit Breaker - Series C UL 489/CSA/IEC

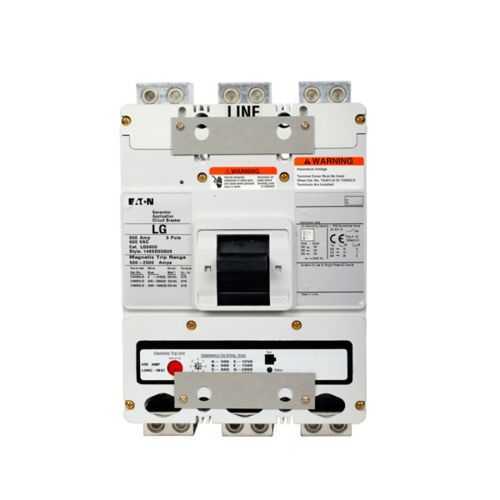

Part Number: LG3600S02
LG3600S02
Manufacturer
Eaton
Part number
LG3600S02
Category

Quick Summary

Eaton LG3600S02 Molded Case Circuit Breaker delivers reliable overcurrent protection for industrial power distribution. Nuisance trips and wiring complexity in Series C panels can disrupt production schedules, increase maintenance costs, and slow upgrades. UL 489, CSA C22.2 No. 5, and IEC 947-2 certifications provide broad regulatory confidence, simplifying audits and cross-border deployments. As a versatile MCCB with shunt-trip options and compatible accessories, it supports safer, faster installations, predictable downtime performance, and scalable protection for engine-generator and standby power applications.

Product Information

Extended Description

LG3600S02 Eaton: Eaton Series C complete molded case circuit breaker, L-frame, Fixed thermal, fixed magnetic trip, Three-pole, 600A, 600 Vac, Line and load, Engine generator, 12-24 Vac/dc rear with left pigtail, Reverse feed, TA603LD, TA603LD
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
LG3600S02
UPC
782114511466
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Certifications
UL 489 CSA Std. C22.2 No. 5 IEC 947-2
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker frame type
Complete breaker
Series
Series C
Shunt trip
12-24 Vac/dc rear with left pigtail shunt
Terminals
Line and load
Frame
L
Class
Engine generator
Line
TA603LD
Prod load
TA603LD
Number of poles
Three-pole
Functions
Reverse
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit breakers explained Circuit breakers explained Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers Series C F-Frame molded case circuit breakers
Feature: 600 A, 600 Vac rating with fixed thermal/magnetic trip. Business Impact: precise, reliable protection for heavy loads reduces the risk of equipment damage and unplanned downtime. Application: motor control centers and main distribution panels where high current interruptions are common. Feature: Series C L-frame, three-pole, complete molded case design. Business Impact: compact, robust enclosure simplifies panel layouts and minimizes space without sacrificing protection. Application: industrial power distribution with tight installation envelopes. Feature: Shunt trip option 12-24 Vac/dc rear with left pigtail. Business Impact: enables remote shutdown for safety interlocks and fast alarm-based responses. Application: safety-critical lines, generator sets, and critical plant interlocks. Feature: Line and load terminals with TA603LD compatibility. Business Impact: streamlined wiring, faster commissioning, and easier upgrades. Application: retrofits and new installations in Series C ecosystems. Feature: Comprehensive certifications (UL 489, CSA, IEC 947-2). Business Impact: reduces compliance risk and accelerates inspections. Application: multi-region facilities and regulated industries.
