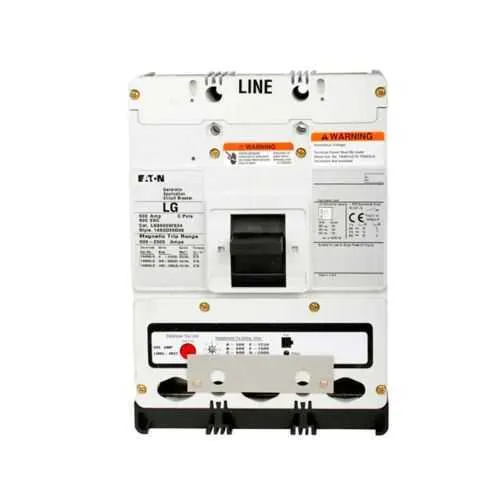

Eaton LG3600X04Y02 Engine Generator MCCB - IEC 947-2
Part Number: LG3600X04Y02
Quick Summary
Eaton LG3600X04Y02 engine generator molded case circuit breaker protects critical generator systems in industrial power setups. Engineers often battle nuisance trips and insufficient protection during generator startup or reverse feed events, risking unplanned downtime. This MCCB carries IEC 947-2, UL 489, and CSA C22.2 No. 5 certifications, signaling broad, comply-with-confidence performance across markets. Its compact L-frame design, three-pole configuration, and optional line or load terminals simplify panel integration and future upgrades. In practice, users gain improved protection coordination for engine-generator applications while preserving service continuity and ease of maintenance.
Product Information
Extended Description
LG3600X04Y02 Eaton: Eaton Series C complete EG molded case circuit breaker, L-frame, Fixed thermal and magnetic trips, 600-2500A, Three-pole, 600A, 600 Vac, Optional line or load, Engine generator, Reverse feed
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
LG3600X04Y02
UPC
782116120000
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 947-2 UL 489 CSA Std. C22.2 No. 5
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker frame type
Complete breaker
Series
Series C
Terminals
Optional line or load
Frame
L
Class
Engine generator
Generator rating
217 kVA/173 kW at 240 Vac, 433 kVA/347 kW at 240 Vac, 542 kVA/433 kW at 600 Vac
Number of poles
Three-pole
Trip rating
600-2500 A
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - LG3600X04Y02
Feature: Fixed thermal and magnetic trips provide reliable, predictable protection. Business Impact: Reduces nuisance trips and protects generators from overload, lowering maintenance costs and downtime. Application: Ideal for high-current engine-generator feeder circuits up to 600 A in 600 Vac systems. Feature: Three-pole, L-frame complete breaker with a 5.48 in footprint. Business Impact: Compact, serviceable design enables straightforward retrofits and panel modernization without extensive enclosure changes. Application: Suitable for retrofit projects in aging power panels or new engine-generator installations.Feature: Optional line or load terminals. Business Impact: Flexible wiring topology supports both source-side protection and downstream protection strategies, simplifying wiring and sparing space. Application: Power plants and standby generator rooms needing adaptable installation.Feature: Generator rating up to 217 kVA/173 kW at 240 Vac or 542 kVA/433 kW at 600 Vac. Business Impact: Accurate sizing improves protection accuracy and reduces over-engineering, optimizing capital spend. Application: Engine-generator sets in industrial facilities with diverse load profiles.Feature: Certifications and standards (IEC 947-2, UL 489, CSA C22.2 No. 5). Business Impact: Ensures global compliance and faster approvals in cross-border projects. Application: Global deployments requiring multi-standard validation.Feature: Weight and dimensions (16 lb; 5.48 in x 5.48 in x 5.48 in). Business Impact: Manageable weight and space enable on-site handling and easier replacement in crowded panels. Application: Retrofit and maintenance tasks where space is at a premium.
Get a Quick Quote for a Eaton LG3600X04Y02
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LG3600X04Y02?
Enquire Now
FAQs
The LG3600X04Y02 is designed for three-pole, L-frame engine-generator protection and supports optional line or load terminals, making it suitable for both source-side protection and downstream circuit protection. Its 5.48 in footprint facilitates retrofits in existing panels, while maintaining alignment with standard mounting patterns and Eaton's engineering data for straightforward installation.
This MCCB carries IEC 947-2, UL 489, and CSA C22.2 No. 5 approvals, ensuring compliance across North America and international markets. These certifications validate safety, performance under fault conditions, and compatibility with common electrical protection schemes used in engine-generator applications, reducing regulatory risk during procurement and commissioning.
Key specs include a 600 A amperage rating, 600 Vac voltage rating, three-pole configuration, and a fixed thermal-magnetic trip type (T186). The device is part of Eaton’s Series C with an L-frame, offering reliable overload protection and fast fault interruption for large generator feeders and standby power systems.
Yes. The LG3600X04Y02 is designed with reverse-feed protection functionality and provides optional line or load terminals, enabling flexible wiring topologies. This is especially valuable for engine-generator installations that require protection coordination during generator startup, switching events, or sudden reversals in power flow.
The device’s robust thermal-magnetic protection reduces nuisance trips, lowering maintenance dispatches. Its certified design supports longer service intervals and easier spare-part planning, contributing to lower total cost of ownership in facilities with frequent generator operation and critical uptime requirements.
