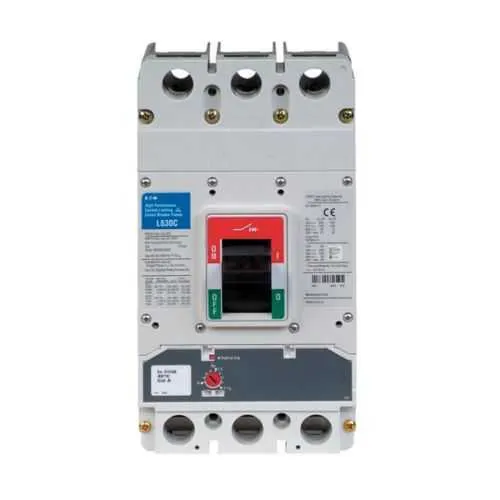

Eaton LGC3600FAW Complete MCCB Three-Pole 600A UL Listed
Part Number: LGC3600FAW
Quick Summary
The Eaton LGC3600FAW complete molded case circuit breaker safeguards industrial power distribution in panel boards and switchgear. Designers often struggle to balance reliable protective coverage with selective coordination without sacrificing panel space or installation time. This LG-frame MCCB is UL Listed, IEC Rated, and CSA Certified, with HACR rating for motor loads, ensuring global compliance. By combining a robust 600 A rating with fast wiring and flexible mounting, it delivers predictable protection while reducing total cost of ownership.
Product Information
Extended Description
LGC3600FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600A, 600 Vac, 200 kAIC at 240 Vac, 100 kAIC at 415 Vac, 100 kAIC at 480 Vac, 50 kAIC at 600 Vac, Without terminals
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGC3600FAW
UPC
786685241838
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Interrupt rating
100 kAIC at 415 Vac 50 kAIC at 600 Vac 100 kAIC at 480 Vac 200 kAIC at 240 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGC3600FAW
Eaton Specification Sheet - LGC3600FAW
Eaton Specification Sheet - LGC3600FAW
Feature → Business Impact → Application: The LG-frame complete breaker enables straightforward integration into Eaton Series G ecosystems, reducing installation time and enabling clean, field-wirable configurations. This translates to faster panel assembly and lower labor costs in control cabinets and motor control centers. Feature → Business Impact → Application: Fixed thermal with adjustable magnetic trip (T185) delivers precise protection coordination, minimizing nuisance trips while safeguarding critical machinery in conveyors, pumps, and fans. Feature → Business Impact → Application: Three-pole design and 600 A rating provide robust feeder protection for main supply lines in industrial plants, improving uptime and safety in zero-downtime environments. Feature → Business Impact → Application: Interrupt ratings up to 200 kAIC at 240 Vac and 100 kAIC at 415 Vac offer margin for short-circuit events, supporting compliance with rigorous electrical protection standards in manufacturing facilities. Feature → Business Impact → Application: Without terminals simplifies field wiring and reduces installation error, accelerating panel fabrication for switchgear assemblies and machine enclosures. Feature → Business Impact → Application: HACR rating supports motor-control applications, aligning with HVAC, compressor, and process equipment protection needs without additional accessories.
Get a Quick Quote for a Eaton LGC3600FAW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGC3600FAW?
Enquire Now
FAQs
The LGC3600FAW is a three-pole LG-frame molded case circuit breaker designed for panelboards and control panels, providing 600 A at 600 Vac with fixed thermal and adjustable magnetic trip (T185). It ships without terminals, simplifying wiring and enabling flexible busbar configurations and easy integration into existing Eaton Series G ecosystems.
Key ratings include 600 A current, 600 Vac voltage, and a trip type of T185. It offers 100 kAIC at 415 Vac, 50 kAIC at 600 Vac, and 200 kAIC at 240 Vac. The breaker is three-pole, LG-frame, HACR rated, and designed for reliable protection of motor loads and feeder circuits.
Yes. The LGC3600FAW carries UL Listed, IEC Rated, and CSA Certified markings, with CE compliance. The HACR rating further indicates suitability for motor-driven applications, ensuring global acceptance across North America and international projects.
This unit uses an LG frame and is listed as a complete breaker without terminals, which simplifies wiring and field modifications. It is compatible with Eaton Series G accessories and other LG-frame devices, helping achieve cohesive protection coordination in control panels and motor control centers.
Eaton provides a policy of one year from installation or 18 months from shipment, whichever occurs first. For service centers, technical documentation, and replacement parts, refer to Eaton’s Breaker Service Centers and specification downloads accompanying the product package.
