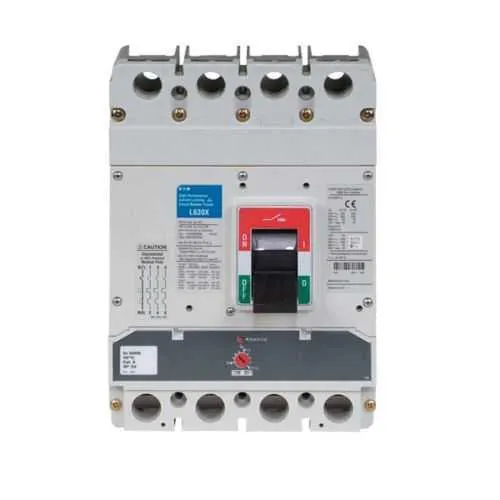

Eaton LGC4400FAG Complete MCB - UL Listed, HACR Rated
Part Number: LGC4400FAG
Quick Summary
The Eaton LGC4400FAG molded case circuit breaker protects industrial distribution panels and motor control centers. Users often face nuisance trips, poor selectivity, and mounting constraints when upgrading legacy MCCBs. It carries UL Listed, CSA Certified, and IEC Rated certifications with HACR rating for broad global applicability, plus CE compliance where required. Designed for reliable protection with a 400 A capacity, LG frame, four-pole configuration, and 50/60 Hz operation, it supports compact panel layouts and straightforward installation. With fixed thermal protection and adjustable magnetic trip, it enables precise coordination and reduced downstream faults, delivering measurable uptime gains and lower maintenance costs for demanding automation environments.
Product Information
Extended Description
LGC4400FAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Four-pole, 400A, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGC4400FAG
UPC
786685183152
Product Length/Depth
4.09 in
Product Height
7.22 in
Product Width
7.22 in
Product Weight
15.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed CSA Certified IEC Rated
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
400 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
200 kAIC at 240 Vac 100 kAIC at 480 Vac 50 kAIC at 600 Vac
Number of poles
Four-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
Feature: Four-pole LG-frame design provides synchronized protection across all conductors → Business Impact: Ensures coordinated fault isolation and stable system performance, reducing arc flash exposure and equipment damage → Application: Ideal for motor control centers and complex panel assemblies in manufacturing plants. Feature: 400 A amperage rating with high interrupt capability announces strong fault isolation → Business Impact: Minimizes downtime and enables safe, quick restoration of power in high-load environments → Application: Heavy-duty feeders and main distribution panels. Feature: Fixed thermal with adjustable magnetic trip (T185) enables precise coordination → Business Impact: Customizable protection curves reduce nuisance trips and improve selectivity with downstream devices → Application: Critical automation lines and machine feeders. Feature: 50/60 Hz operation with 80% rated burden and metric mounting hardware → Business Impact: Simplifies installation, improves reliability, and supports compact panel designs in global facilities → Application: Industrial controls in mixed-voltage environments. Feature: Line and load terminals with a four-pole configuration → Business Impact: Easy wiring, faster commissioning, and robust load handling → Application: New installations and panel upgrades requiring reliable ingress protection and straightforward maintenance. Feature: Certifications UL Listed, CSA Certified, IEC Rated, HACR rated, CE compliant → Business Impact: Global compliance simplifies procurement and reduces risk during audits → Application: multinational manufacturing operations and compliance-driven projects.
Get a Quick Quote for a Eaton LGC4400FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGC4400FAG?
Enquire Now
FAQs
The LGC4400FAG uses metric mounting hardware and line/load terminals designed for four-pole LG-frame assemblies. This enables straightforward mounting in modern electrical panels and motor control centers, reduces wiring complexity, and supports fast commissioning. Its compact footprint (4.09 in depth, 7.22 in height and width) helps maximize panel density while maintaining safe clearances.
LGC4400FAG offers 200 kAIC interrupt rating at 240 V, 100 kAIC at 480 V, and 50 kAIC at 600 V. The trip system combines fixed thermal protection with an adjustable magnetic element (T185), enabling precise coordination and selective protection for downstream devices. This configuration supports reliable fault isolation in demanding industrial applications.
Yes. The unit is UL Listed, CSA Certified, and IEC Rated, with HACR rating and CE compliance noted in the catalog. This combination supports global procurement, regulatory alignment, and simplified audits across multinational facilities, reducing the need for multiple device variants and streamlining maintenance and training.
Best suited for high-current control panels, motor control centers, and heavy-load feeders in manufacturing and process industries. Its 400 A rating, four-pole LG frame, and robust interrupt performance enable reliable protection for large machines and critical automation lines, while its compact footprint assists in space-constrained panel assemblies.
Maintenance is straightforward due to standardized line/load terminals and a durable LG-frame design that tolerates frequent switching. The 400 A rating and high interrupt capacity reduce downtime during faults, delivering faster fault clearance and reduced wear on downstream equipment. The product warranty aligns with Eaton’s policy, offering a clear remediation window post-installation.
