Eaton LGE3350FAWCA2S4X1Y17 MCCB - UL Listed

Part Number: LGE3350FAWCA2S4X1Y17
LGE3350FAWCA2S4X1Y17
Manufacturer
Eaton
Part number
LGE3350FAWCA2S4X1Y17
Category

Quick Summary

The Eaton Series G molded case circuit breaker protects power-distribution panels in industrial equipment. Engineers often struggle to balance reliable protection with compact panel footprint and minimal nuisance trips under fluctuating loads. UL Listed certification ensures compliance for NA installations, and this LG-frame, three-pole unit offers a 350 A rating with high interrupt ratings across voltages. Its fixed thermal with adjustable magnetic trip and the 2A-2B auxiliary switch with right pigtail simplify coordination in control panels. Compatibility with 50 to 60 Hz systems and the option for line or load terminals supports flexible installation. For buyers seeking dependable protection, this MCCB combines robust performance with Eaton's warranty and ready-to-use technical resources.

Product Information

Extended Description

LGE3350FAWCA2S4X1Y17 Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adj. magnetic trip, Three-pole, 350A, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, 2A-2B w/right pigtail, 12 Vac w/ left pigtail
Product Name

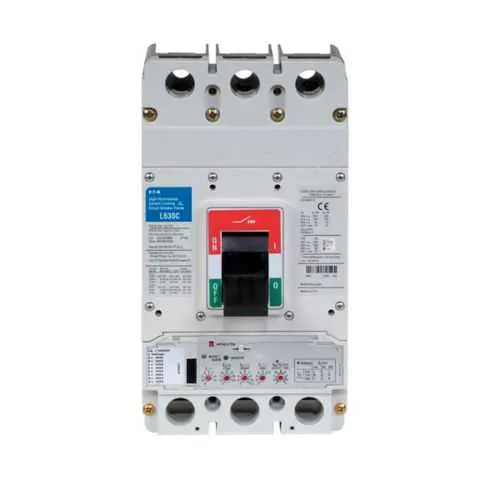

Eaton Series G complete molded case circuit breaker
Catalog Number
LGE3350FAWCA2S4X1Y17
UPC
786685913278
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
350 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Auxiliary switch
2A-2B with right pigtail
Rating
100% rated
Series
Series G
Terminals
Without terminals, optional line or load
Frame
LG
Frequency rating
50 to 60 Hz
Interrupt rating
18 kAIC at 600 Vac 35 kAIC at 480 Vac 65 kAIC at 240 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals Application of Tap Rules to Molded Case Breaker Terminals Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Plug-in adapters for molded case circuit breakers product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide Selling Policy 25-000 - Distribution and Control Products and Services
LG-frame design enables high current handling in a compact footprint, supporting tighter panel layouts and reduced enclosure costs while maintaining strict protection standards. The fixed thermal, adjustable magnetic trip delivers precise overcurrent protection, reducing nuisance trips in variable loads and minimizing unplanned downtime. A three-pole configuration with a 350 A rating provides consistent protection across three-phase power, with interrupt ratings of 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac, ensuring safety in diverse industrial environments. The auxiliary switch 2A-2B with a right-side pigtail offers easy signaling for control logic and remote monitoring, improving coordination and visibility. Line or load terminals and an LG frame extension support flexible installation, practical retrofits, and future expansion. This model aligns with industry best practices for control panels, data centers, and manufacturing lines, delivering measurable improvements in reliability, safety, and total cost of ownership.
