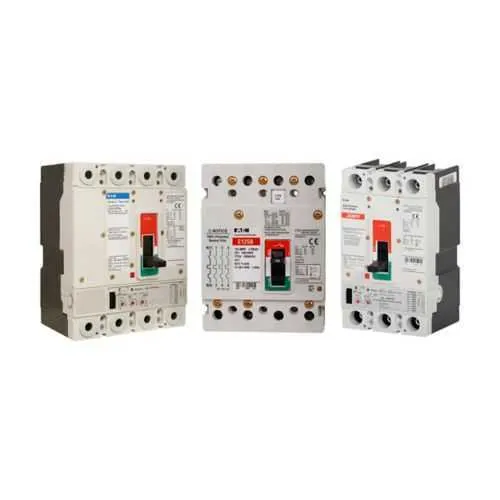

Eaton LGE340033WA1D14D16 Complete MCCB - 65 kAIC 240V
Part Number: LGE340033WA1D14D16
Quick Summary
The Eaton LGE340033WA1D14D16 complete MCCB provides reliable overcurrent protection for power distribution panels and industrial equipment. Engineers often struggle with coordinating protection settings across multi-pole devices while meeting demanding short-circuit ratings in LG-frame installations. This unit is IEC rated, UL Listed, CSA Certified, and CE marked, ensuring global compliance and safety. With the Series G design and three-pole LG frame, it supports 50–60 Hz operation at 240 VAC, enabling fast installation, predictable coordination, and reduced maintenance costs for critical feeders. In practice, the 400 A rating and 65 kAIC withstand at 240 VAC help protect motors, drives, and power distribution cabinets while simplifying procurement and lifecycle planning.
Product Information
Extended Description
LGE340033WA1D14D16 Eaton: Eaton Series G complete molded case circuit breaker, LG-frame, LG, Digitrip 310 RMS, Electronic LS trip, Three-pole, 400A, 65 kAIC at 240Vac, Without terminals, Aux, metric load and line end caps, UVR
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE340033WA1D14D16
UPC
786689241247
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
15 lb
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Type
Complete breaker
Amperage Rating
400 A
Trip Type
T167
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Without terminals
Frame
LG
Frequency rating
50 to 60 Hz
Interrupt rating
35 kAIC at 480 Vac 18 kAIC at 600 Vac 65 kAIC at 240 Vac
Number of poles
Three-pole
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGE340033WA1D14D16
Feature: LG-frame three-pole complete breaker with a 400 A rating and Digitrip 310 RMS electronic LS trip. Business Impact: Delivers precise protection coordination for feeders and motor circuits, reducing nuisance trips and equipment wear. Application: Ideal for panelboards and motor control centers in manufacturing lines and processing plants. The advanced electronic trip enables fast, accurate fault detection and easy integration with modern protection schemes. Feature: High interrupt rating of 65 kAIC at 240 VAC (with 35 kAIC at 480 VAC and 18 kAIC at 600 VAC) ensures robust short-circuit withstand across typical industrial feeders. Business Impact: Improves safety margins for high-energy faults and minimizes downstream damage. Application: Suitable for critical power feeds in warehouses, water treatment, and process lines. Feature: Without terminals, auxiliary contacts, metric load, or line end caps (UVR option available). Business Impact: Lets system integrators select compatible cabling and accessories, reducing stock variety and lead times. Application: Cleanroom panels, control cabinets, and retrofit projects where customized terminations are common. Feature: Certifications and compliance—IEC rated, UL Listed, CSA Certified, CE marked. Business Impact: Facilitates global deployment and regulatory compliance across industries. Application: Global manufacturing sites needing standardized protection equipment. Feature: Compact LG frame footprint with 4.09 in depth, 5.48 in height and width, and 15 lb weight. Business Impact: Simplifies panel layout and reduces enclosure space, easing installation and service. Application: Replacement in existing LG-frame installations and new builds requiring space-efficient protection. Feature: 50–60 Hz operation and 240 VAC rating. Business Impact: Supports wide regional availability and consistent performance across facilities. Application: Industrial automation, machine bays, and distribution panels requiring reliable protection across multiple regions.
Get a Quick Quote for a Eaton LGE340033WA1D14D16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGE340033WA1D14D16?
Enquire Now
FAQs
This model ships without terminals, auxiliary contacts, or metric load and line end caps, so you’ll need compatible terminations and accessories. Ensure a three-pole LG-frame fit, verify 400 A rating, and select appropriate line/load terminals and optional UVR if required. Check alignment with Digitrip 310 settings for proper coordination and fault clearing times.
Key ratings include 400 A nominal current, 65 kAIC interrupt rating at 240 VAC, and 50–60 Hz operation. It also supports 480 VAC and 600 VAC fault levels with respective lower interrupt ratings. This makes it suitable for typical industrial feeders and motor circuits while maintaining coordination with upstream protections.
Yes. With three poles, LG frame compatibility, and 400 A capacity, this MCCB is well-suited for motor feeders and machine control panels. The Digitrip 310 electronic trip provides precise coordination and fast fault clearance, helping reduce motor damage and downtime in production environments.
The unit is IEC rated, UL Listed, CSA Certified, and CE marked. These certifications support global deployment, meet safety and performance standards, and facilitate regulatory compliance for multinational plants and projects.
The robust 65 kAIC at 240 VAC rating supports long-term protection for high-energy faults, reducing maintenance costs by limiting downstream damage. The electronic Digitrip 310 enables precise fault drafting and predictable replacement planning, while the compact LG-frame size simplifies future panel upgrades or retrofits.
