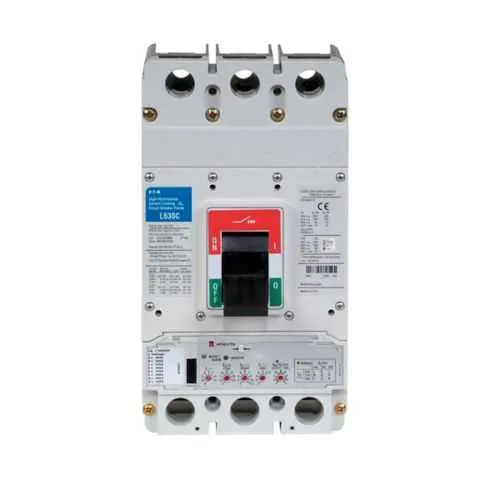

Eaton LGE340035G Complete MCCB - 65kAIC @240V CE Marked
Part Number: LGE340035G
Quick Summary
Eaton LGE340035G complete molded case circuit breaker protects panels and control circuits with reliable LG-frame protection and a robust 400 A rating. Engineers often face nuisance trips due to marginal coordination; the electronic LSG trip delivers precise protection, improves selectivity, and reduces downtime in work cells and drives. The device is CE Marked, CSA Certified, UL Listed, and IEC Rated, meeting multiple global standards to simplify compliance across plants, OEMs, and service partners. With metric mounting and a 50/60 Hz rating, it integrates easily into existing panels and supports scalable protection programs for manufacturing, data centers, and process industries.
Product Information
Extended Description
LGE340035G Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Digitrip 310 RMS, Electronic LSG trip, Three-pole, 400A, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE340035G
UPC
782116993963
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
15.3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified UL Listed IEC Rated
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
400 A
Trip Type
Electronic LSG
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
35 kAIC at 480 Vac 65 kAIC at 240 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGE340035G
Eaton Specification Sheet - LGE340035G
Eaton Specification Sheet - LGE340035G
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: LG-frame molded case breaker construction enables compact installation in crowded panels while delivering substantial interrupt ratings. For this model, a three-pole design at 400 A supports heavy-duty feeders and motor circuits, with 65 kAIC available at 240 VAC, 35 kAIC at 480 VAC, and 18 kAIC at 600 VAC. Business impact: higher fault-current withstand without nuisance trips, reducing downtime and equipment damage in critical lines. Application: motor feeders and distribution panels in manufacturing environments. Feature: Electronic LSG trip offers precise, fast protection with refined diagnostic capability. Business impact: improved selectivity and coordination across devices, minimizing unnecessary outages and extending equipment life. Application: control panels, machines, and process lines where accurate tripping curves and clear fault indication matter. Feature: 80% rated performance aligns protection with motor starting and partial-load conditions common in manufacturing. Business impact: enables safer derating and better energy management while maintaining safety margins. Application: feeders and distribution in 50/60 Hz industrial environments. Feature: Line and load terminals with metric mounting simplify installation and wiring organization. Business impact: faster commissioning, fewer wiring errors, and compatibility with standard enclosures. Application: panel builders and system integrators who require reliable mechanical fit. Feature: Comprehensive compliance with CE Marked, CSA Certified, UL Listed, and IEC Rated standards, plus HACR rating noted in catalog notes. Business impact: mitigates regulatory risk and streamlines procurement for global projects. Warranty: 25-000 policy with one-year installation window or 18 months from shipment. Application: project commissioning and long-term maintenance planning. Feature: Series G integration with compatible accessories and options supports selective coordination and modular expansion for futureproof automation protection. Business impact: reduces total cost of ownership by enabling scalable protection architectures in automation and process industries.
Get a Quick Quote for a Eaton LGE340035G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGE340035G?
Enquire Now
FAQs
Yes, the LGE340035G is designed for LG-frame, three-pole installation with line and load terminals and metric mounting hardware. It fits standard MCCB enclosures and switchgear backplanes used in industrial panels. During installation, verify correct wiring to line and load terminals, observe 50/60 Hz rating, and tighten hardware to manufacturer torque specs. Use compatible accessories for selective coordination.
The LGE340035G features an electronic LSG trip and provides interrupt ratings of 65 kAIC at 240 VAC, 35 kAIC at 480 VAC, and 18 kAIC at 600 VAC, with a 400 A amperage rating. It is three-pole with a LG frame and supports operation at 50 to 60 Hz, making it suitable for diverse industrial feeders and machines.
Yes, the LGE340035G is well suited for motor control centers and control panels. Its LG-frame, three-pole design, and high interrupt ratings provide reliable protection for motors and feeders. The electronic LSG trip improves selectivity, reducing nuisance trips in motor starting scenarios, while metric mounting ensures quick, secure integration into existing panel assemblies.
This MCCB carries CE Marked, CSA Certified, UL Listed, and IEC Rated certifications, along with HACR rating. These certifications simplify global procurement, enable safer operation across regions, and support regulatory compliance in manufacturers’ quality systems, OEM deployments, and service networks. They help meet international electrical safety and performance requirements with confidence.
The product comes with Eaton’s warranty policy (25-000): one year from installation or 18 months from shipment, whichever occurs first, reducing lifecycle risk. Regular inspection of connections, terminal torque, and trip indicators helps maintain reliability. Availability of Eaton service centers and documentation aids timely maintenance, contributing to reduced downtime and improved return on investment.
