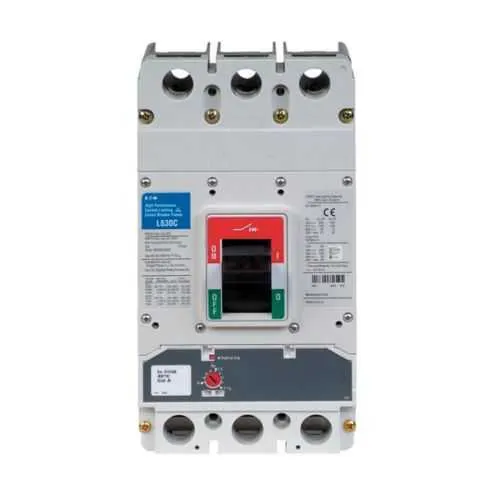

Eaton LGE3500FAW Molded Case Circuit Breaker - 65 kAIC at 240 Vac
Part Number: LGE3500FAW
Quick Summary
Eaton LGE3500FAW molded case circuit breaker protects industrial power panels from overloads. In high-demand MCC environments, nuisance trips and miscoordination can halt production. The LG-frame device is IEC-rated, UL Listed, and CSA Certified, with CE compliance for global use. With a 500 A rating at 600 Vac and a fixed thermal, adjustable magnetic trip, it delivers reliable protection and easy installation in control cabinets and motor circuits.
Product Information
Extended Description
LGE3500FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 500A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Without terminals
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE3500FAW
UPC
782116890590
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Amperage Rating
500 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Interrupt rating
65 kAIC at 240 Vac 35 kAIC at 415 Vac 35 kAIC at 480 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGE3500FAW
Eaton Specification Sheet - LGE3500FAW
Eaton Specification Sheet - LGE3500FAW
Three-pole LG-frame design delivers robust short-circuit protection while maintaining precise coordination with downstream devices. This translates to reduced downtime and safer startup sequences in control panels and MCCs. Fixed thermal, adjustable magnetic trip (T185) lets you tailor protection to motor and load profiles, improving selectivity and reducing nuisance trips in demanding industrial environments. The breaker offers 65 kAIC at 240 Vac and 35 kAIC at 415/480 Vac, with 18 kAIC at 600 Vac, providing scalable protection for feeders and machines while supporting compliant operation across voltage regimes. Without terminals and the compact LG-frame footprint ease panel mounting and wiring, enabling faster installation and reduced field labor. HACR rating and broad certifications (CE, IEC, UL, CSA) support global projects and cross-border procurement. For power distribution and machine protection, expect reliable performance with long-term maintenance economics.
