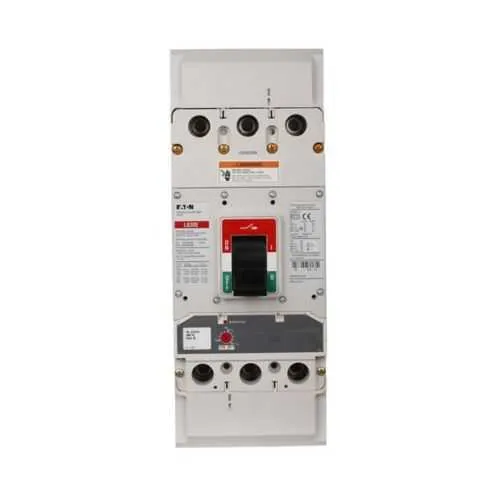

Eaton LGE3600FAG Molded Case Circuit Breaker - UL Listed
Part Number: LGE3600FAG
Quick Summary
Eaton LGE3600FAG molded case circuit breaker is a reliable protection device for electrical distribution panels and switchgear. Engineers often struggle to fit a robust LG-frame MCCB within standard bus layouts while ensuring precise trip settings and easy service access. This model carries IEC Rated, UL Listed, and CSA Certified marks, with HACR rating to protect control and appliance circuits. Its combination of 600 A at 600 V and clear line-load termination supports scalable panel designs, reducing wiring complexity and downtime. By aligning with CE marking and Series G compatibility, it delivers notable business value through improved uptime, safer operation, and simplified procurement for control panels and machinery applications.
Product Information
Extended Description
LGE3600FAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600 A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line and load, Metric
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE3600FAG
UPC
782116142422
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
18 kAIC at 600 Vac 35 kAIC at 415 Vac 35 kAIC at 480 Vac 65 kAIC at 240 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGE3600FAG
Eaton Specification Sheet - LGE3600FAG
Eaton Specification Sheet - LGE3600FAG
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The LG-frame complete breaker design reduces panel depth and footprint, enabling tighter control cabinets without compromising interrupt capacity, which translates to space savings and easier maintenance in packaged machinery. Feature → Application: Fixed thermal with adjustable magnetic trip (T185) provides precise, site-tunable protection for motors and circuits, lowering nuisance trips and improving overall system reliability in manufacturing lines. Feature → Business Impact → Application: Three-pole configuration with line and load terminals simplifies wiring and reduces installation time, delivering faster commissioning for factory integrations and retrofit projects. Feature → Application: 600 A, 600 Vac rating with 18 kAIC at 600 Vac and 65 kAIC at 240 Vac supports diverse load profiles from automation panels to distribution boards, improving protection coordination and cost of ownership. Feature → Business Impact → Application: HACR-rated and CE Marked, with IEC/UL/CSA certifications, ensures compliance across global plants and OEMs, easing cross-border sourcing and warranty coverage. Feature → Application: Metric mounting hardware and LG frame compatibility ensure seamless integration with Eaton and third-party enclosures, reducing compatibility risk in modernizing legacy systems.
