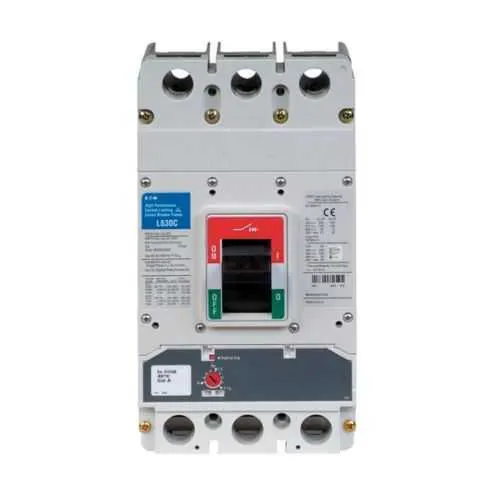

Eaton LGE3600FAW Molded Case Circuit Breaker - UL Listed
Part Number: LGE3600FAW
Quick Summary
The Eaton LGE3600FAW Molded Case Circuit Breaker protects electrical panels by delivering reliable overcurrent protection for industrial power distribution. If you struggle with nuisance trips or miscoordination, fixed thermal and adjustable magnetic trip settings let you tailor protection to your load. This unit carries IEC rated, UL Listed, and CSA certified markings, with CE compliance for global installations. Designed for LG-frame integration and plug-compatible accessories, it reduces field wiring, supports quick retrofits, and helps minimize downtime in automated facilities. Its three-pole design and robust construction make it well-suited for manufacturing, water treatment, and packaging lines, delivering safer startups and more predictable maintenance planning.
Product Information
Extended Description
LGE3600FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Without terminals
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE3600FAW
UPC
782116141753
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Interrupt rating
65 kAIC at 240 Vac 18 kAIC at 600 Vac 35 kAIC at 415 Vac 35 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGE3600FAW
Eaton Specification Sheet - LGE3600FAW
Eaton Specification Sheet - LGE3600FAW
600 A amperage rating enables reliable protection for heavy power draws in manufacturing and process lines. This translates to fewer nuisance trips and less unplanned downtime, improving line availability and wiring protection in panelboards. 600 VAC operation with a fixed thermal, adjustable magnetic trip (T185) provides coordinated protection for motors and feeders. By tuning the magnetic trip, you prevent nuisance trips while ensuring fast clearance at fault currents, supporting safer machine starts. High interrupt ratings—65 kAIC at 240 VAC and 18–35 kAIC across 415–600 VAC—offer fault-current withstand in diverse plant environments, enabling safer, more reliable distribution. LG-frame design with no terminals simplifies installation in existing enclosures and reduces field wiring time, lowering labor costs. Certifications including IEC Rated, UL Listed, CSA Certified, and CE Marked support global compliance. HACR rating confirms suitability for control circuits, further reducing mis-application risk. Compatibility with motor operators, plug-in adapters, and high-performance handles via Eaton literature enhances configuration flexibility and reliability in control panels.
