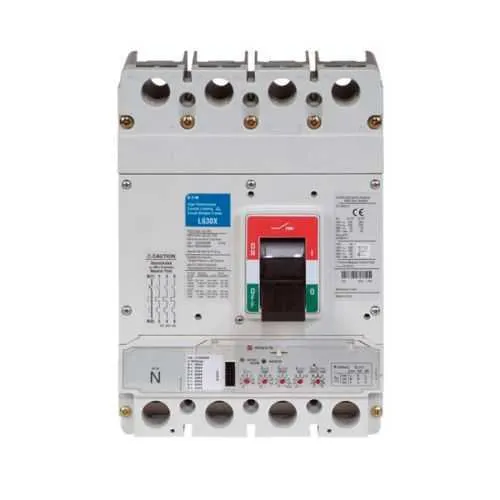

Eaton LGE460033G Molded Case Circuit Breaker - UL Listed

Part Number: LGE460033G
LGE460033G
Manufacturer
Eaton
Part number
LGE460033G
Category

Quick Summary

Molded Case Circuit Breaker is a protective device designed to interrupt power in heavy-duty motor control and distribution panels. Engineers often battle downtime caused by nuisance tripping, improper coordination, and lengthy maintenance cycles. This Eaton LGE460033G model brings robust protection with UL Listed, IEC rated, and CSA Certified credentials, plus CE marking for international compliance, and HACR rating for HVAC applications. The LG-frame complete breaker features the Digitrip 310 electronic LS trip, four poles, and a 600 A, 600 Vac rating, delivering reliable, selective protection. It also offers metric mounting and standard line/load terminals, helping streamline installation, reduce field wiring errors, and support serviceability in modern control panels. These attributes translate to lower lifecycle costs and better system uptime.

Product Information

Extended Description

LGE460033G Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Complete breaker, Digitrip 310 RMS, Electronic LS trip, Four-pole, 600A, 600 Vac, Line and load, Metric, 0% protected neutral pole
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGE460033G
UPC
782116994052
Product Length/Depth
7.22 in
Product Height
7.22 in
Product Width
7.22 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed IEC Rated CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T167
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Protection
0% protected neutral pole
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
65 kAIC at 240 Vac 35 kAIC at 480 Vac 18 kAIC at 600 Vac 35 kAIC at 415 Vac
Number of poles
Four-pole
Application of Tap Rules to Molded Case Breaker Terminals Application of Tap Rules to Molded Case Breaker Terminals Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Eaton Specification Sheet - LGE460033G Eaton Specification Sheet - LGE460033G Eaton Specification Sheet - LGE460033G
LG-frame complete breaker with Digitrip 310 electronic LS trip delivers fast, precise overcurrent protection. This improves selectivity and reduces nuisance trips in motor circuits, translating to less downtime and easier maintenance in manufacturing lines. The 600 A, 600 Vac rating handles heavy loads while maintaining reliable protection for pumps, conveyors, and presses. Four-pole design with 0% protected neutral pole ensures safe, coordinated disconnection in 3‑phase systems. The interruptrates of 65 kAIC at 240 Vac, 18 kAIC at 600 Vac, and 35 kAIC at 415–480 Vac support robust fault handling across typical industrial services, reducing arc energy and equipment wear. Compact 7.22 in dimensions and 20 lb weight simplify panel integration, with metric mounting hardware speeding installation and service access. UL Listed, IEC Rated, CSA Certified, and CE Marked credentials ease compliance across global facilities and projects.

Get a Quick Quote for a Eaton LGE460033G

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton LGE460033G? Enquire Now

FAQs

Yes. The LGE460033G is designed for LG-frame installations and uses metric mounting hardware, with line and load terminals for straightforward, secure mounting in standard control panels.
The device provides 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac, enabling robust fault interruption across typical industrial service conditions.
It is well suited for heavy-duty motor protection in manufacturing lines, conveyors, pumps, and machine controls, where reliable protection and selective coordination reduce downtime and extend equipment life.
This MCCB is UL Listed, IEC Rated, CSA Certified, and CE Marked, with HACR rating noted in catalog notes, aligning with global safety and performance standards.
Warranty is one year from the date of installation or eighteen months from the date of shipment, whichever occurs first, under Eaton policy 25-000.
