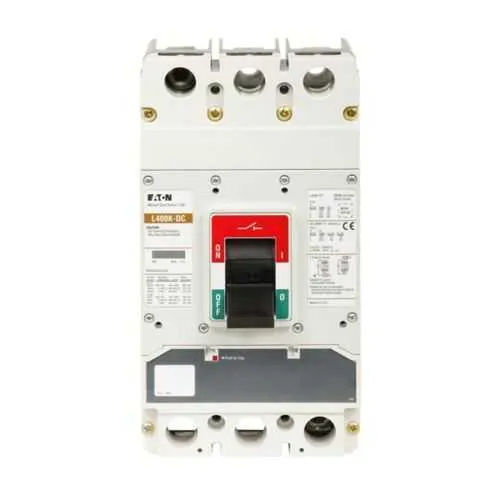

Eaton LGEDC3500FAG PV Guard Solar MCCB - UL 489
Part Number: LGEDC3500FAG
Quick Summary
Eaton LGEDC3500FAG PV Guard Solar MCCB provides reliable overcurrent protection for DC solar PV systems. However, selecting a DC-rated breaker for PV installations can be challenging due to unique arc behavior and the need for precise trip characteristics. This product carries UL 489 certification, validating safety and performance for molded case breakers used in PV protection, with design tuned for LG-frame configurations in commercial and utility-scale installs. While CE or IP rating details aren’t listed in the current data, it integrates with standard line-load terminals and metric mounting for straightforward installation. The combination of compact form factor and robust interrupt ratings supports lower wiring costs, faster commissions, and improved system uptime.
Product Information
Extended Description
LGEDC3500FAG Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, LG-frame, LG, Fixed thermal, adj. magnetic trip, Three-pole, 500A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line/load, Metric
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
LGEDC3500FAG
UPC
786685479514
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Amperage Rating
500 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Class
Vdc
Mounting hardware
Metric
Interrupt rating
18 kAIC at 600 Vac 65 kAIC at 240 Vac 35 kAIC at 415 Vac 35 kAIC at 480 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
PVGard solar circuit breakers technical data sheet
PVGard solar circuit breakers technical data sheet
Feature → Business Impact → Application: The LGEDC3500FAG is designed for DC PV protection in solar installations, delivering controlled current interruption to minimize arc risk and equipment damage, which translates to reduced maintenance intervals and downtime in PV farms and rooftop arrays. Application: This directly supports reliable energy production in commercial and utility-scale solar projects, helping owners meet uptime targets and stay compliant with protection standards. Feature → Business Impact → Application: LG-frame, three-pole construction with 500 A and 600 Vac ratings provides scalable protection for large DC feeders, enabling streamlined integration with existing Eaton PVGuard ecosystems and reducing procurement complexity for project teams. Application: Ideal for LG-frame MCCB deployments in new or retrofit PV systems. Feature → Business Impact → Application: Trip Type T185 and multi-voltage interrupt ratings (18 kAIC at 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac) deliver precise, fast fault clearing across DC and AC boundaries, improving system safety margins and equipment longevity. Application: Suitable for mixed PV/DC fast-protection scenarios in hybrid microgrids. Feature → Business Impact → Application: Line/load terminals and metric mounting hardware enable straightforward installation and compatibility with standard electrical rooms, reducing commissioning time and installation risk. Application: Practical for field teams upgrading protection in solar carports, campuses, or utility connections. Feature → Business Impact → Application: Compact 5.48 in dimensions with a 16 lb weight simplifies logistics, handling, and cabinet space planning, lowering shipping costs and enabling denser protection layouts. Application: Beneficial for tight equipment closets and distributed solar installations. Feature → Business Impact → Application: UL 489 certification and documented data sheets support compliance audits and safe procurement, helping procurement teams reduce risk and speed project approvals. Application: Critical for code-compliant installations and regulator-ready documentation in new builds.
Get a Quick Quote for a Eaton LGEDC3500FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGEDC3500FAG?
Enquire Now
FAQs
Yes. The LGEDC3500FAG is built for LG-frame integration and uses metric mounting hardware, enabling straightforward installation alongside line and load terminals in standard electrical cabinets.
The breaker is rated 500 A at 600 Vac with a T185 trip type. It provides interrupt ratings of 18 kAIC at 600 Vac and 65 kAIC at 240 Vac, plus 35 kAIC at 415/480 Vac, suitable for dense PV protection scenarios.
Yes. Designed for DC PV protection, the LGEDC3500FAG uses a complete molded case breaker with PV-specific features to handle DC arc characteristics, ensuring reliable protection in PV arrays, microgrids, and array combiner sections.
UL 489 certification is listed for this product, validating safety and performance for molded case circuit breakers used in PV protection. Other certifications are not specified in the provided data.
Warranty follows Eaton policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This supports predictable maintenance cycles and reduces long-term operating risk for solar protection gear.
