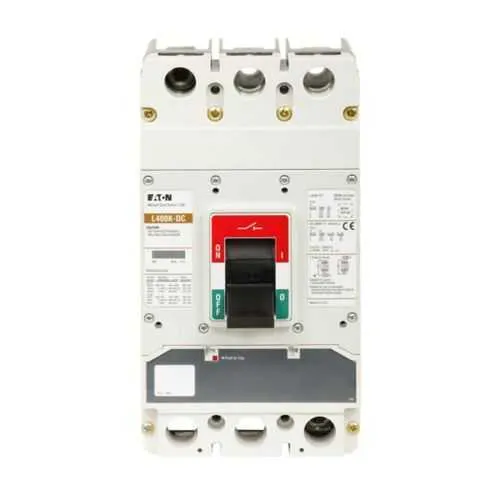

Eaton LGEDC3500FAW PVGuard Solar MCCB - UL 489
Part Number: LGEDC3500FAW
Quick Summary
PVGuard LGEDC3500FAW is a complete molded case circuit breaker for solar DC protection in PV systems. Engineers often struggle with reliable DC protection and precise trip behavior in variable solar conditions. UL 489 certification ensures safety compliance for MCCBs, while the LG frame design supports straightforward panel integration. The model delivers dependable PV protection with fast commissioning and scalable safety across PV arrays and storage systems, helping procurement and engineering teams reduce commissioning time and improve system uptime.
Product Information
Extended Description
LGEDC3500FAW Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 500A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, No term., Vdc
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
LGEDC3500FAW
UPC
786685479576
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Amperage Rating
500 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Class
Vdc
Interrupt rating
35 kAIC at 480 Vac 65 kAIC at 240 Vac 35 kAIC at 415 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
PVGard solar circuit breakers technical data sheet
PVGard solar circuit breakers technical data sheet
Feature: LG frame, three-pole design with 500 A rating and 600 Vac voltage capability. Business impact: Robust protection for PV DC circuits with a clear, predictable trip response that minimizes fault consequences. Application: Suitable for the DC side of solar installations and mixed volt/ DC protection schemes. The result is easier coordination with upstream protection and shorter outage duration during faults. Feature: Fixed thermal, adjustable magnetic trip (Trip Type T185). Business impact: Precise, site-tuned protection curves that enhance selectivity and reduce nuisance trips. Application: Critical in arrays with diverse string configurations and energy storage tie-ins. Feature: Interrupt ratings of 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, and 18 kAIC at 600 Vac. Business impact: Strong fault current handling for modern PV systems and rapid isolation during high fault events. Application: High-energy PV plants and DC emergency shutdown scenarios. Feature: Three-pole, without terminals, LG frame, class Vdc. Business impact: Streamlined installation with straightforward panel integration and reduced terminal assembly time. Application: OEM panel or switchgear integrations that require quick spec-to-install workflows. Feature: UL 489 certification and standard protection for 600 Vac DC and AC service. Business impact: Compliance confidence for regulated markets and faster qualification of switchgear assemblies. Application: Global deployments requiring UL-listed MCCBs within PV and energy storage deployments. Feature: 25-000 warranty with one year from installation or 18 months from shipment. Business impact: Clarity on service life expectations and predictable maintenance budgeting. Application: Long-term project planning and spare parts provisioning for solar facilities.
Get a Quick Quote for a Eaton LGEDC3500FAW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGEDC3500FAW?
Enquire Now
FAQs
The LGEDC3500FAW is a three-pole LG-frame molded case circuit breaker rated for 500 A and 600 V, provided without terminals to simplify integration into standard switchgear or OEM panels. It fits typical AG/DS bus configurations used in PV DC protection schemes and pairs well with Eaton's LV/MCCB ecosystem for straightforward spec-to-install workflows.
This device uses a fixed thermal, adjustable magnetic trip (T185). It provides 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, and 18 kAIC at 600 Vac, with a 500 A current rating. The combination supports reliable nuisance-trip reduction and fast isolation for high-current PV fault events in both AC and DC environments.
Yes. With a 600 Vac rating and Vdc class designation, the LGEDC3500FAW is designed for PV DC protection and can coordinate with energy storage interfaces. Its LG frame and three-pole configuration support robust protection across PV arrays and DC distribution networks, while meeting UL 489 requirements for safe integration into solar control panels.
The LGEDC3500FAW is UL 489 listed, confirming compliance with established safety and performance standards for molded case circuit breakers used in electrical protection systems, including PV applications. Certification helps streamline regulatory acceptance and customer auditing for solar installations.
Eaton provides a warranty per policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This helps with budgeting for maintenance and parts, supports predictable total cost of ownership, and aligns with typical service intervals for switchgear components in solar facilities.
