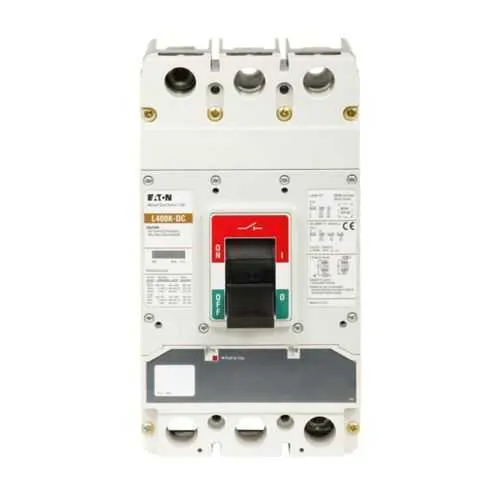

Eaton LGEDC3600FAW PV Guard MCCB - UL 489, 600A, 600V
Part Number: LGEDC3600FAW
Quick Summary
The Eaton LGEDC3600FAW PV Guard MCCB protects PV systems with reliable DC/AC circuit protection. Engineers often face downtime during commissioning due to mismatched trip curves and DC safety challenges. UL 489 certification validates safety and performance for molded case breakers used in solar installations. With a compact LG frame and three‑pole configuration, it fits standard switchgear while delivering consistent protection across voltages. Designed for PV arrays and inverters, this model reduces maintenance costs and supports fast, compliant commissioning by utilities and EPCs. Its DC class rating and robust construction translate to longer service intervals and lower lifecycle risk.
Product Information
Extended Description
LGEDC3600FAW Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, No term., Vdc
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
LGEDC3600FAW
UPC
786685479583
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Class
Vdc
Interrupt rating
65 kAIC at 240 Vac 35 kAIC at 480 Vac 35 kAIC at 415 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - LGEDC3600FAW
Eaton Specification Sheet - LGEDC3600FAW
PVGuard DC/AC protection is integrated into a complete molded case breaker. This design minimizes protection gaps across DC PV strings and AC distribution, boosting system reliability and uptime. Ideal applications include solar arrays, inverter rooms, and combiner boxes in commercial and utility-scale installations. High interrupt ratings across multiple voltages provide a wide protective margin. The device delivers 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, and 18 kAIC at 600 Vac, enabling safe operation under fault conditions. This supports utility-grade PV deployments and reduces equipment damage risk. 600 A amperage rating paired with a 600 Vac rating supports large PV string currents and heavy AC feeders. This reduces the need for parallel devices and simplifies protection planning, saving material and installation time. Applications include utility-scale infeed points and commercial rooftops with dense arrays. Trip Type T185 ensures a fast, predictable response to short circuits and arc faults, improving safety margins and reducing nuisance trips in dynamic PV environments. LG frame and three-pole configuration deliver a robust, standard form factor that matches common MCCB enclosures. The complete breaker frame simplifies replacement in existing switchgear and reduces field adaptation time. Terminals are without terminals, enabling clean, busbar-friendly field wiring. UL 489 certification confirms compliance with a globally recognized safety standard for molded case breakers. A 25-000 Eaton policy provides one year from installation or 18 months from shipment, whichever occurs first, reducing lifecycle risk and enabling proactive maintenance planning. Compact dimensions of 5.48 in length, height, and width and a modest 13.5 lb weight facilitate mounting in constrained spaces and speed up installation. This combination of form factor and LG frame supports quick upgrades and straightforward stocking for field service teams.
Get a Quick Quote for a Eaton LGEDC3600FAW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGEDC3600FAW?
Enquire Now
FAQs
The LGEDC3600FAW is optimized for three‑phase PV protection in commercial and utility-scale installations. With a 600 A rating at 600 Vac and a T185 trip type, it protects PV arrays, inverter rooms, and AC feeders. The three‑pole LG frame fits standard MCCB enclosures, simplifying retrofits and new builds alike.
Key ratings include 600 A amperage, 600 Vac voltage, and a T185 trip type. Interrupt ratings are 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, and 18 kAIC at 600 Vac, providing robust fault clearance across both DC and AC domains typical in PV systems.
Yes. The LGEDC3600FAW carries UL 489 certification, a widely recognized safety standard for molded case circuit breakers. This certification supports compliance in PV protection schemes and simplifies approval processes with utilities and inspectors.
The unit uses an LG frame, is a three‑pole device, and is supplied without terminals, which facilitates busbar connections and clean field wiring. Its compact 5.48 in footprint and 13.5 lb weight enable straightforward mounting and minimal enclosure modifications in existing switchgear.
Warranty terms follow Eaton policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This provides a clear risk window for maintenance, replacements, and planning of preventive checks, helping protect total cost of ownership in solar projects.
