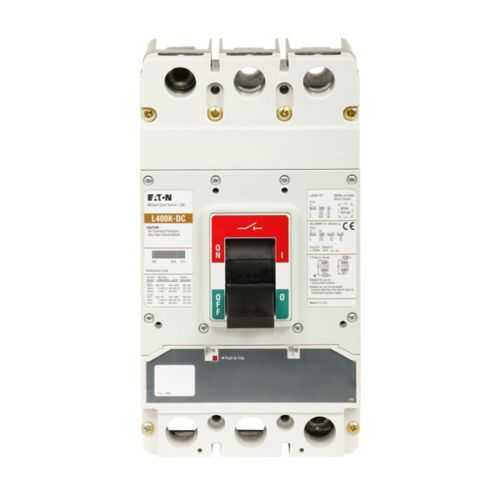

Eaton LGEDC3630NN PVGuard Solar MCCB - UL 489
Part Number: LGEDC3630NN
Quick Summary
Eaton LGEDC3630NN PVGuard solar MCCB protects DC PV networks with reliable overcurrent protection. Engineers often wrestle with selecting a high-capacity breaker that withstands rapidly changing PV voltages without nuisance trips or overheating. UL 489 certification underpins safety, and the LG frame compatibility supports smooth integration with existing MCCB infrastructure. Designed as a frame-only, three-pole unit, it delivers 630 A at 600 Vac with 65 kAIC at 240 Vac and 35 kAIC at 415/480 Vac, while 18 kAIC at 600 Vac captures fast fault clearing. The PVGuard branding emphasizes dedicated solar protection, while the compact 5.48 in form factor and absence of terminals reduce field wiring and installation time, translating to lower total cost of ownership in PV system protection.
Product Information
Extended Description
LGEDC3630NN Eaton: Eaton Series G DC/PvGard molded case circuit breaker frame, LG-frame, LG, Fixed thermal, fixed magnetic trip, Three-pole, 630A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Without terminals, Vdc
Product Name
Eaton PV Guard / Solar molded case circuit breaker frame
Catalog Number
LGEDC3630NN
UPC
786685479446
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
11.9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Type
Frame only
Amperage Rating
630 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
LG
Circuit breaker frame type
Frame only
Terminals
Without terminals
Frame
LG
Class
Vdc
Interrupt rating
35 kAIC at 480 Vac 35 kAIC at 415 Vac 65 kAIC at 240 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - LGEDC3630NN
Eaton Specification Sheet - LGEDC3630NN
Feature: 630 A amperage rating and 600 Vac rating for a three-pole LG frame MCCB. Business Impact: Provides robust, scalable protection for large PV arrays and DC distribution, reducing risk of fault escalation and equipment damage. Application: Use in utility-scale and commercial solar installations where high fault-clearing capability and reliable DC protection are required. Long-tail keywords: PVGuard MCCB, DC protection, three-pole MCCB, LG frame compatibility. Feature: UL 489 certified protection. Business Impact: Delivers recognized safety compliance and market acceptance, lowering commissioning risk and easing regulatory audits. Application: Ideal for installations demanding certified MCCBs in PV harsh environments. Long-tail keywords: UL 489 molded case breaker, electrical safety standards, UL certified MCCB. Feature: Frame-only, without terminals. Business Impact: Simplifies wiring topology, reduces field assembly errors, and speeds up installation and serviceability. Application: PV array combiner and DC distribution panels where clean, quick mounting is valued. Long-tail keywords: frame-only MCCB, simplified wiring, easy installation. Feature: LG frame, three-pole design with specified interrupt ratings. Business Impact: Ensures predictable trip performance across system voltages, enabling safer energy management and faster fault isolation. Application: Three-phase PV protection in DC distribution cabinets and PV racking systems. Long-tail keywords: LG frame MCCB, three-pole protection, interrupt rating 65 kAIC. Feature: High short-circuit withstand with 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, 18 kAIC at 600 Vac. Business Impact: Improves system resilience against transient faults and arc-flash risk, reducing downtime and repair costs. Application: Solar energy farms, commercial PV inverters, and battery storage integration where reliable fault clearance matters. Long-tail keywords: PV system protection, arc-flash mitigation, high interrupt rating.
Get a Quick Quote for a Eaton LGEDC3630NN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGEDC3630NN?
Enquire Now
FAQs
Use the LG frame compatibility to mount LGEDC3630NN as a three-pole, frame-only unit without terminals. Ensure proper clearance and follow UL 489 wiring guidance for DC PV distribution. Verify torque specs and secure all terminations to minimize resistance heat and ensure reliable tripping performance under fault conditions.
Amperage rating is 630 A with a voltage rating of 600 Vac. Trip type is T186, and the circuit breaker is LG frame, frame-only. Interrupt ratings include 65 kAIC at 240 Vac, 35 kAIC at 415/480 Vac, and 18 kAIC at 600 Vac, supporting robust protection for PV installations.
Yes. The LGEDC3630NN carries UL 489 certification, validating safety and performance for molded case breakers. It is marketed under the PVGuard line for solar applications, offering reliable DC protection, compatibility with LG frame components, and alignment with PV system protection standards.
Yes. The unit is specified as a three-pole MCCB in an LG frame, designed for three-phase DC protection in PV distribution and balance-of-system applications. Its trip characteristics and high interrupt ratings support reliable fault isolation across PV arrays and DC bus configurations.
The frame-only design with no terminals reduces installation time and wiring errors, translating to lower labor costs. UL 489 compliance and PVGuard branding support certified protection, potentially reducing downtime and repair costs over the system life. The 630 A rating also accommodates future expansion without a full device replacement.
