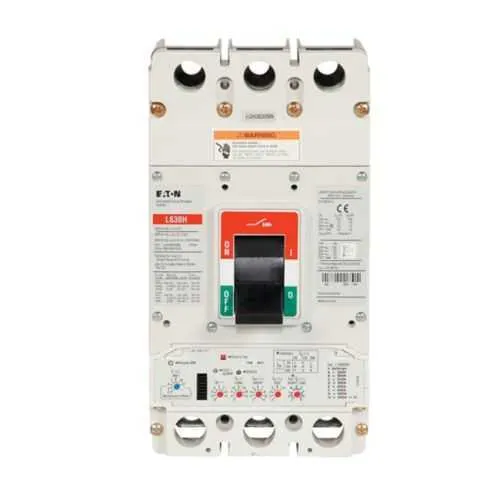

Eaton LGH3400FAGC Molded Case Circuit Breaker - 100% Rated
Part Number: LGH3400FAGC
Quick Summary
The Eaton LGH3400FAGC molded case circuit breaker provides reliable overcurrent protection for medium to large electrical distribution panels. Engineers often struggle with nuisance trips and limited selectivity as systems scale, making panel upgrades risky and costly. It is IEC rated, UL Listed, and CSA Certified, with CE marking and HACR rating to satisfy global safety standards. With a 400 A rating and LG-frame three-pole design, the unit delivers robust protection while enabling straightforward installation in modern control panels. This device also supports 50/60 Hz operation, aligning with both North American and international applications, helping minimize downtime and simplify procurement across multi-site facilities.
Product Information
Extended Description
LGH3400FAGC Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 400A, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Line and load, 50/60 Hz, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3400FAGC
UPC
786685291338
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
400 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Interrupt rating
35 kAIC at 600 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac
Number of poles
Three-pole
