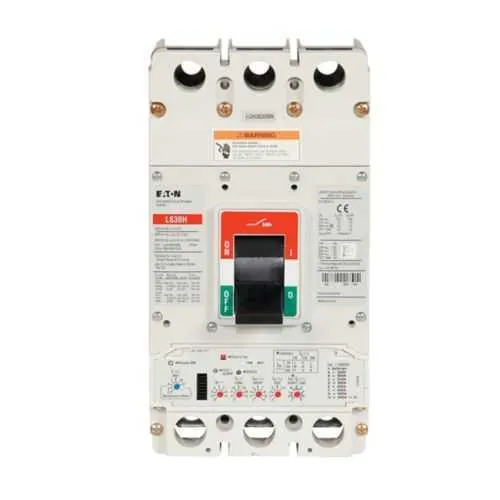

Eaton LGH3400FAW Molded Case Breaker - 100 kAIC at 240V
Part Number: LGH3400FAW
Quick Summary
Molded Case Circuit Breaker LGH3400FAW provides reliable overload and short-circuit protection for electrical distribution panels in industrial environments. Engineers often wrestle with nuisance tripping, space constraints, and regulatory compliance during panel upgrades. This unit carries IEC Rated, UL Listed, and CSA Certified marks, with HACR rating for motor loads, helping align with safety and performance standards. As part of Eaton’s Series G MCCB family, it offers robust protection and predictable coordination, while its compact LG frame supports easier installation in shared spaces. The combination of high interrupt ratings and 400 A capacity translates into meaningful uptime gains for machine builders and facilities teams.
Product Information
Extended Description
LGH3400FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 400A, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Without terminals, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3400FAW
UPC
782116141777
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Amperage Rating
400 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Without terminals
Frame
LG
Frequency rating
50 to 60 Hz
Interrupt rating
35 kAIC at 600 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac
Number of poles
Three-pole
