Eaton LGH3500FAGC molded case circuit breaker - 100% rated
Part Number: LGH3500FAGC
Quick Summary
Eaton LGH3500FAGC molded case circuit breaker is a complete MCCB solution for protecting power distribution in industrial panels. When downtime and nuisance trips threaten uptime, reliable protection and predictable trips become essential. This LG-series device carries UL Listed, CSA Certified, and CE Marked certifications to meet global compliance requirements, while maintaining HACR-rated suitability for control circuits. By combining a 500 A rating with 600 Vac capability and 100% rated performance, it supports robust protection strategies and easier spare-part planning. This makes it an attractive option for panel builders seeking proven reliability, straightforward installation, and strong lifecycle value in demanding environments.
Product Information
Extended Description
LGH3500FAGC Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adj. magnetic trip, Three-pole, 500A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Copper, Line/load, Metric, 100% rated
Product Name

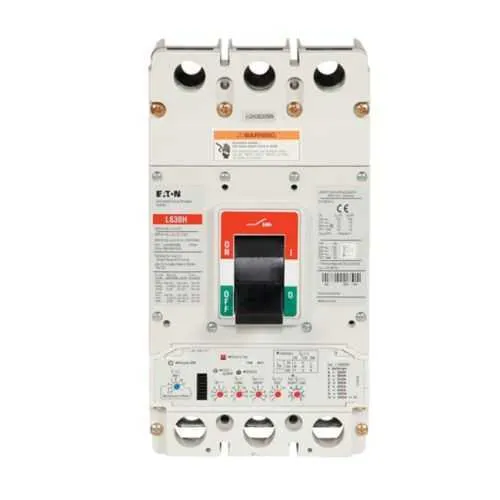

Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3500FAGC
UPC
786685291345
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified IEC Rated UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
500 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Terminal material
Copper
Interrupt rating
100 kAIC at 240 Vac 35 kAIC at 600 Vac 70 kAIC at 415 Vac 65 kAIC at 480 Vac
Number of poles
Three-pole
