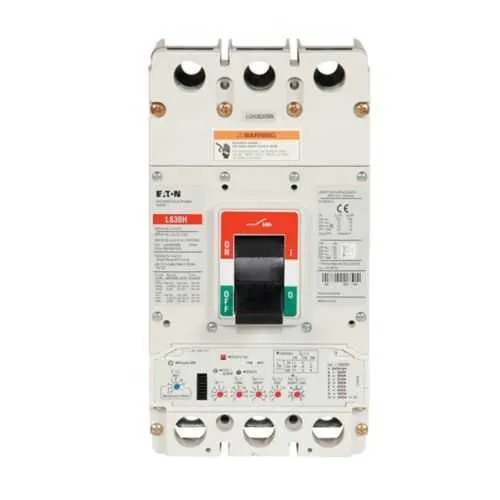

Eaton LGH3600FAG Complete MCCB - UL Listed CSA Certified
Part Number: LGH3600FAG
Quick Summary
LGH3600FAG is a complete molded case circuit breaker that provides reliable power protection for industrial electrical panels and distribution systems. Engineers frequently face challenges in achieving precise trip coordination, space optimization, and consistent performance under varying loads. UL Listed, IEC Rated, and CSA Certified, this LG-frame breaker meets global compliance and safety standards. With a 600 A rating at 600 Vac and HACR compatibility, it delivers robust protection while supporting compact, serviceable installations. Designed for line and load connections in LG three-pole frame breakers, it integrates with metric mounting hardware for fast, secure installs. The model also supports high interrupt ratings across voltages, helping engineers meet application-specific safety margins and downtime targets.
Product Information
Extended Description
LGH3600FAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600 A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Line and load, Metric
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3600FAG
UPC
782116142781
Product Length/Depth
4.09 in
Product Height
10.13 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed IEC Rated CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
70 kAIC at 415 Vac 100 kAIC at 240 Vac 65 kAIC at 480 Vac 35 kAIC at 600 Vac
Number of poles
Three-pole
