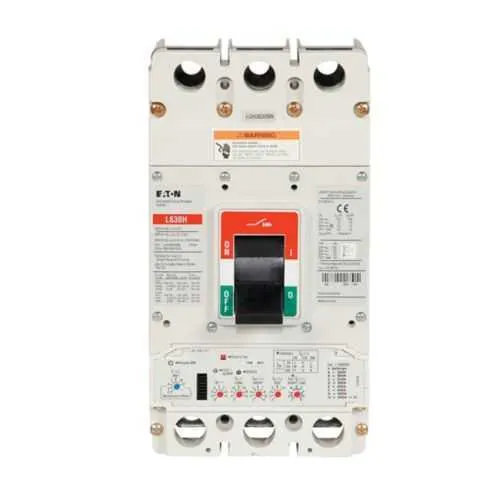

Eaton LGH3600FAWC Complete MCCB – IEC Rated UL Listed CSA Certified

Part Number: LGH3600FAWC
LGH3600FAWC
Manufacturer
Eaton
Part number
LGH3600FAWC
Category

Quick Summary

Eaton LGH3600FAWC molded case circuit breaker protects electrical panels with precise overcurrent control for industrial automation and machine builds. Engineers often struggle to balance selective protection and uptime in compact control panels. This LG frame MCCB is IEC Rated, UL Listed, and CSA Certified, enabling global deployment and simplified compliance. With a 600 A, 600 Vac rating and HACR compatibility, it supports motor starting and heavy loads while keeping form factor tight. The unit’s fixed thermal and adjustable magnetic trip deliver precise coordination across circuits, reducing nuisance tripping. Its three-pole design and 100% rated performance support predictable protection in panel boards, switchgear, and motor control centers.

Product Information

Extended Description

LGH3600FAWC Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Copper, No terminals, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3600FAWC
UPC
786685291413
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Terminals
Without terminals
Frame
LG
Terminal material
Copper
Interrupt rating
35 kAIC at 600 Vac 70 kAIC at 415 Vac 100 kAIC at 240 Vac 65 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid High performance operating handles for Series G circuit breakers product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide
Feature: High-capacity protection in a compact LG-frame MCCB. Business Impact: Enables dense panel layouts without sacrificing protection quality, reducing panel footprint and wiring complexity. Application: Suitable for panel boards and motor control centers in industrial plants. Feature: Fixed thermal trip with adjustable magnetic trip (T185). Business Impact: Delivers precise coordination to minimize nuisance trips and optimize motor starting; supports customized protection curves. Application: Industrial machinery and conveyor systems where load variability is common. Feature: 600 A at 600 Vac with 35 kAIC at 600 Vac and higher ratings at other voltages. Business Impact: Ensures safe interruption of fault currents across common industrial voltages, improving system reliability and protecting equipment. Application: Heavy automation equipment and MCC assemblies. Feature: Three-pole LG frame with copper terminals (without terminals). Business Impact: Facilitates integration into standard 3-phase distributions and enables compatible lug options for a clean, robust connection. Application: Control panels and switchgear in manufacturing lines. Feature: 100% rated and HACR rated with CE Marked, UL Listed, and CSA Certified. Business Impact: Supports compliance across global projects and motor protection requirements, reducing certification time and risk. Application: International projects and regulated facilities requiring stringent compliance. Feature: Practical dimensions and weight (5.48 in W x 5.48 in H x 5.48 in D; 16 lb). Business Impact: Easy handling, faster installation, and compatibility with standard mounting spaces; lowers installation labor cost. Application: Retrofit and new-build panel installations in compact spaces.

Get a Quick Quote for a Eaton LGH3600FAWC

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton LGH3600FAWC? Enquire Now

FAQs

LGH3600FAWC is specified as without terminals, so you will need compatible lug kits or terminal adapters designed for the LG frame. Ensure your panel or MCC enclosure supports three-pole devices in the LG series and use approved copper conductors. Verify torque values and torque-limiter guidelines from Eaton documentation to ensure reliable clamping and long-term performance.
Key specs include a 600 A amperage rating, 600 Vac voltage rating, three-pole configuration, and a fixed thermal with adjustable magnetic trip (T185). Interrupt ratings are 35 kAIC at 600 Vac, 70 kAIC at 415 Vac, 100 kAIC at 240 Vac, and 65 kAIC at 480 Vac, supporting fast fault interruption and robust coordination in diverse load scenarios.
Yes. The LGH3600FAWC is a three-pole LG-frame MCCB designed for full three-phase protection up to 600 A. Its 600 Vac rating and 100% rated performance support reliable protection for motor loads, distribution feeders, and panelboard assemblies in industrial facilities while enabling straightforward coordination with downstream devices.
The LGH3600FAWC carries IEC Rated, UL Listed, CSA Certified certifications and CE marking. These credentials confirm compliance with international and North American standards, support HACR-rated operation for motor control, and simplify cross-border project approvals and safety inspections in regulated environments.
The unit’s 100% rated performance reduces nuisance trips and unplanned outages, enhancing uptime and productivity. Its robust construction, UL/IEC/CSA certifications, and HACR rating support longer service life with predictable maintenance. The 16 lb weight and compact dimensions ease replacement and field servicing, lowering lifecycle costs in large panel assemblies.
