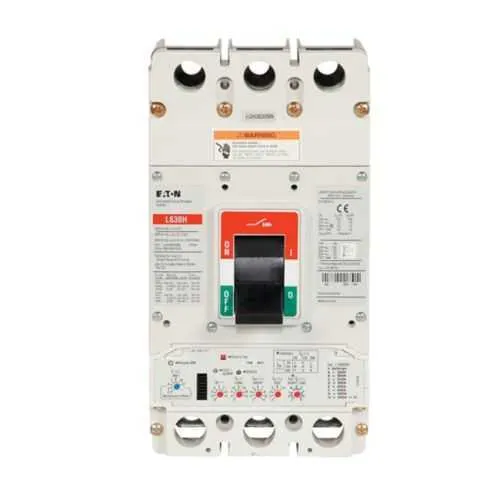

Eaton LGH3630AAG Molded Case Circuit Breaker - UL Listed
Part Number: LGH3630AAG
Quick Summary
LGH3630AAG molded case circuit breaker from Eaton protects electrical systems by interrupting fault currents in industrial panels. This device delivers reliable protection while maintaining service continuity in demanding environments. Engineers often wrestle with achieving precise trip settings and selective coordination across complex MCCB architectures. The LGH3630AAG addresses these challenges with adjustable thermal and magnetic trips, a 630 A rating, and 600 Vac operation, enabling tailored protection. UL Listed and HACR rated, it meets common regulatory requirements while supporting IEC markets. By leveraging the LG Series frame and metric mounting hardware, it offers straightforward installation and future‑proof scalability. This combination reduces downtime, improves safety, and supports efficient maintenance planning for panel builders and OEMs.
Product Information
Extended Description
LGH3630AAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Adjustable thermal, adjustable magnetic trip, Three-pole, 630A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Line and load, Metric
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH3630AAG
UPC
782116120635
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Adjustable thermal, adjustable magnetic trip units are typically used in IEC markets and are not UL or CSA listed, LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
630 A
Voltage rating
600 Vac
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
35 kAIC at 600 Vac 100 kAIC at 240 Vac 70 kAIC at 415 Vac 65 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - LGH3630AAG
Eaton Specification Sheet - LGH3630AAG
Eaton Specification Sheet - LGH3630AAG
Selling Policy 25-000 - Distribution and Control Products and Services
630 A and 600 Vac ratings enable protection of high-current, three-phase feeders with minimal voltage drop and reliable fault interruption, reducing downstream equipment damage and downtime. The three-pole LG frame supports balanced protection across all phases, simplifying wiring and improving coordination in motor and process circuits. Adjustable thermal and magnetic trips provide tailored protection curves, lowering nuisance tripping while meeting system-wide safety requirements. High interrupt ratings—up to 100 kAIC at 240 Vac and 70 kAIC at 415 Vac—offer robust fault handling for demanding industrial environments, improving system reliability. Line and load terminals with metric mounting hardware support fast, compliant installations across global panels, while UL Listed and HACR-rated capabilities streamline building and equipment compliance for HVAC and control applications. Comprehensive documentation and compatibility with IEC markets help shorten commissioning cycles and reduce engineering risk.
Get a Quick Quote for a Eaton LGH3630AAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGH3630AAG?
Enquire Now
FAQs
Install the LGH3630AAG by aligning the LG-frame breaker with the panel’s mounting rail and securing it with metric hardware. Connect the line and load conductors to the labeled terminals, then verify three-pole wiring and correct phase sequencing. Set the adjustable thermal and magnetic trip to the desired protection level and test coordination according to the Eaton guides.
The LGH3630AAG is rated for 630 A and 600 Vac, with a three-pole configuration and adjustable thermal and magnetic trip. It provides interrupt ratings of 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600 Vac, enabling tailored protection across diverse loads.
Yes. The LGH3630AAG is HACR rated and designed with IEC market applications in mind, offering compatibility with metric mounting and non-UL/CSA trip unit variations. It is UL Listed for broader compliance, making it suitable for building systems, HVAC, and industrial control panels.
LGH3630AAG carries UL Listed certification and HACR rating. The warranty terms specify one year from installation or eighteen months from shipment, whichever occurs first, providing a clear protection window for maintenance planning and total cost of ownership.
Choosing the Eaton Series G LG frame MCCB delivers precise, adjustable protection for high-current, three‑phase systems with reliable fault interruption. Benefits include improved safety, reduced downtime, easier international installation with metric mounting, and strong regulatory compliance via UL Listed and HACR ratings, all supported by comprehensive Eaton documentation.
