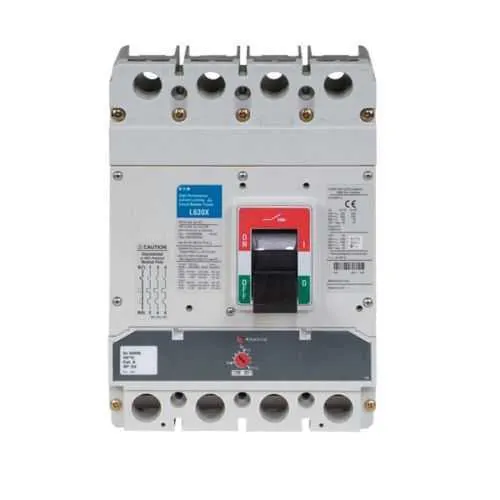

Eaton LGH4600FAW Molded Case Breaker - UL Listed
Part Number: LGH4600FAW
Quick Summary
LGH4600FAW molded case circuit breaker provides reliable overcurrent protection for power distribution panels in industrial settings. In many facilities, nuisance trips and inconsistent protection coordination drive downtime and maintenance costs. This unit carries UL Listed, CSA Certified and IEC Rated certifications, plus CE Marked compliance, underpinning global safety and reliability. The LG frame with HACR rating supports clean, code-compliant panel designs, while its 600 A at 600 Vac rating and adjustable magnetic trip enable scalable protection for motors and heavy feeders, delivering business value through reduced warranty risk and improved uptime.
Product Information
Extended Description
LGH4600FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adj. magnetic trip, Four-pole, 600A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, No term., 0% protected neutral pole
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGH4600FAW
UPC
782116891115
Product Length/Depth
7.22 in
Product Height
7.22 in
Product Width
7.22 in
Product Weight
17.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed CSA Certified IEC Rated
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Protection
0% protected neutral pole
Terminals
Without terminals
Frame
LG
Interrupt rating
35 kAIC at 600 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac 70 kAIC at 415 Vac
Number of poles
Four-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Molded case circuit breakers providing higher levels of selective coordination product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
NG and ND-Frame molded case circuit breakers
NG and ND-Frame molded case circuit breakers
Feature: LG frame four-pole complete breaker provides true 3-phase protection. Business Impact: Ensures simultaneous trip across all poles, reducing neutral conductor stress and mis-trips. Application: Ideal for motor control centers and power distribution panels in manufacturing. Feature: 600 A current rating and 600 Vac voltage rating with 35 kAIC at 600 Vac and 100 kAIC at 240 Vac. Business Impact: Supports high-load feeders with robust fault- current handling, enhancing system reliability. Application: Main feeders and critical process lines in industrial facilities. Feature: Fixed thermal with adjustable magnetic trip (T185). Business Impact: Enables precise coordination with upstream protection and selective coordination strategies, lowering nuisance trips. Application: Panelboards and MCCs requiring tailored trip curves. Feature: Four-pole design and HACR-rated construction. Business Impact: Suitable for balanced 3-phase loads with motor loads while meeting motor-load protection requirements. Application: HVAC and automated manufacturing equipment panels. Feature: Terminals without terminals. Business Impact: Installation flexibility with field-terminals or lug options, simplifying retrofits. Application: Retrofit projects where existing buswork dictates custom terminations. Feature: Certifications and warranty. Business Impact: Meets global compliance standards and provides a 1-year (installation) or 18-month (shipment) warranty, reducing long-term risk. Application: Enterprise-wide protection programs and service contracts.
Get a Quick Quote for a Eaton LGH4600FAW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LGH4600FAW?
Enquire Now
FAQs
Yes. The LGH4600FAW uses a four-pole LG frame designed for three-phase systems up to 600 Vac. It ships without terminals, so you can select lug kits or field-terminals matched to your panel buswork, ensuring safe connections and proper clearance.
The LGH4600FAW provides 35 kAIC at 600 Vac and 70 kAIC at 415 Vac, with higher ratings at lower voltages (100 kAIC at 240 Vac). These ratings support robust fault current handling in industrial feeders.
Ideal for motor control centers and power distribution panels in manufacturing and process environments. The four-pole LG frame, HACR rating, and 600 A/600 Vac rating support reliable circuit protection for large motors and critical loads.
UL Listed, CSA Certified and IEC Rated certifications, along with CE Marking, ensure global compliance for safety, performance and interoperability in diverse markets.
Eaton provides a warranty of one year from installation or eighteen months from shipment, whichever comes first. Regular inspection and proper coordination with Series G breakers supports longer service life and predictable maintenance.
