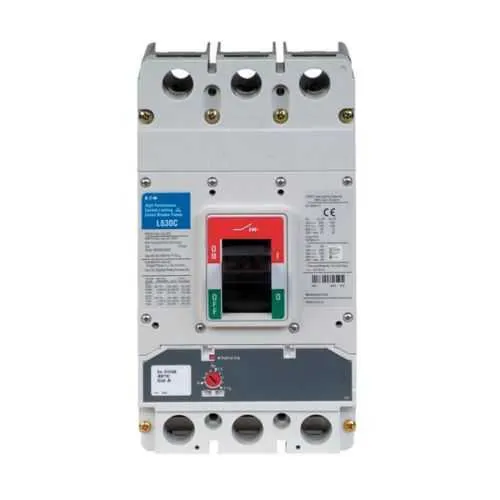

Eaton LGS3250FAG Complete Molded Case Circuit Breaker - 85 kAIC at 240 Vac
Part Number: LGS3250FAG
Quick Summary
Eaton LGS3250FAG is a complete molded case circuit breaker used to protect power distribution in industrial control panels. For engineers tasked with safeguarding critical loads, nuisance trips and poor coordination can derail projects. This LG-frame MCCB from Series G combines fixed thermal and adjustable magnetic trip to deliver reliable protection across 250 A feeders. It carries UL Listed, CSA Certified, and CE Marked certifications, with HACR rating noted for motor-driven applications. By aligning with a compact, metric-mount design, it simplifies panel layouts, reduces wiring complexity, and improves serviceability. This makes it a practical choice for panel builders and maintenance teams seeking consistent performance and global compliance.
Product Information
Extended Description
LGS3250FAG Eaton: Eaton Series G complete molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 250A, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGS3250FAG
UPC
782116142552
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified IEC Rated UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
250 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
85 kAIC at 240 Vac 50 kAIC at 480 Vac 25 kAIC at 600 Vac
Number of poles
Three-pole
