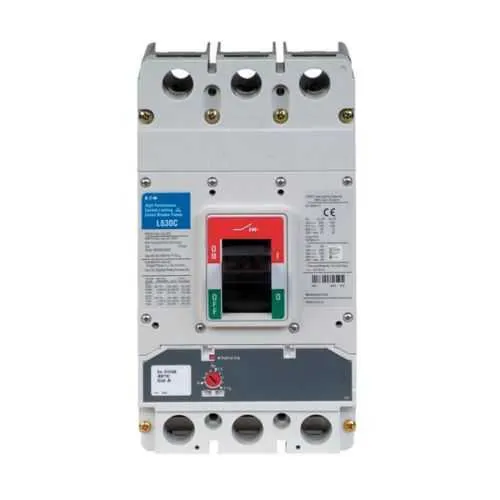

Eaton LGS3300FAGC Molded Case Breaker - UL Listed
Part Number: LGS3300FAGC
Quick Summary
The Eaton LGS3300FAGC molded case breaker is a complete LG-frame MCCB designed for 3-pole protection in industrial power distribution. This solution addresses the common hardware and coordination challenges engineers face when protecting large loads across panels and equipment. It carries critical certifications including UL Listed, IEC Rated, and CSA Certified, ensuring robust compliance in global installations. With HACR-rated, 100% rated operation and selectable trip characteristics, it supports reliable protection with reduced nuisance tripping. The product's compact LG frame and line/load terminals streamline panel integration, while its 300 A rating supports scalable distribution and long-term lifecycle cost savings for manufacturing and process industries.
Product Information
Extended Description
LGS3300FAGC Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 300A, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, Line and load, 50/60 Hz, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGS3300FAGC
UPC
786685291079
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
300 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Interrupt rating
50 kAIC at 480 Vac 25 kAIC at 600 Vac 85 kAIC at 240 Vac
Number of poles
Three-pole
