Eaton LGS3400AAG Series G MCCB - UL Listed
Part Number: LGS3400AAG
Quick Summary
Eaton Series G molded case circuit breaker provides reliable overcurrent protection for industrial control panels and power distribution systems. Engineers often wrestle with achieving fast fault interruption while maintaining selective coordination across varying voltages and loads, which can drive costly downtime. UL Listed, HACR rated, and IEC-friendly with adjustable thermal and magnetic trip features help ensure both compliance and reliable protection. The LG-frame design and metric mounting hardware simplify panel layouts, reducing installation time, while the line-and-load terminals support straightforward wiring and future upgrades. For equipment operators, predictable trip behavior translates to minimized nuisance trips and easier maintenance planning.
Product Information
Extended Description

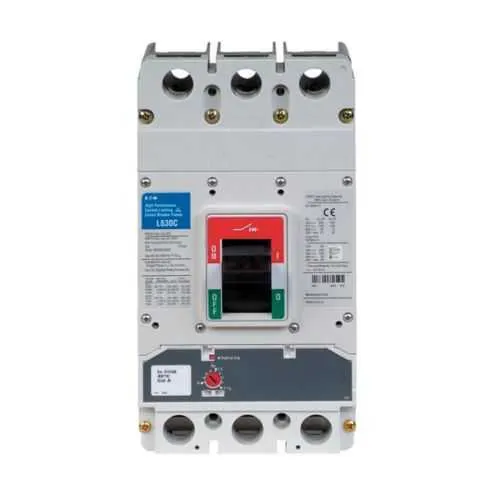

LGS3400AAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Adjustable thermal, adjustable magnetic trip, Three-pole, 400A, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGS3400AAG
UPC
782116120499
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Adjustable thermal, adjustable magnetic trip units are typically used in IEC markets and are not UL or CSA listed, LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
400 A
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
25 kAIC at 600 Vac 85 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Three-pole
