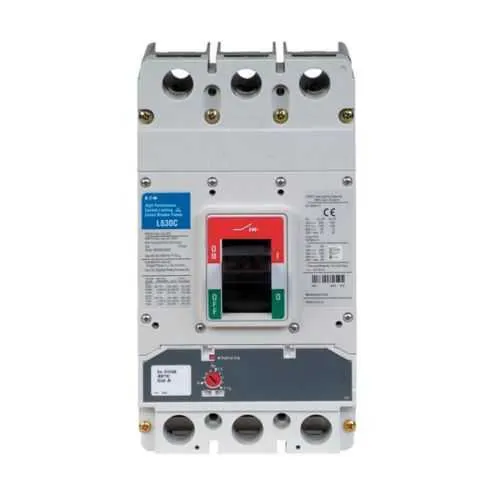

Eaton LGS3600FAW Complete MCCB - UL/CSA/IEC rated
Part Number: LGS3600FAW
Quick Summary
Eaton LGS3600FAW molded case circuit breaker protects panels and motor controls in industrial environments. Facilities face nuisance trips, space constraints, and wiring challenges when upgrading protection, often slowing projects and increasing costs. This LG-frame, three-pole device carries CE Marked, UL Listed, CSA Certified, and IEC Rated approvals to support global deployments and safer commissioning. By combining a fixed thermal with an adjustable magnetic trip, it helps coordinate protection across feeders and loads. Designed for streamlined panel integration, it reduces installation time while delivering reliable, code-compliant performance in modern control environments and industrial power distributions.
Product Information
Extended Description
LGS3600FAW Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Complete breaker, Fixed thermal, adjustable magnetic trip type, Three-pole, 600A, 600 Vac, 85 kAIC at 240 Vac, 50 kAIC at 415/480 Vac, 25 kAIC at 600 Vac, Without terminals
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LGS3600FAW
UPC
782116890927
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
13.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified UL Listed IEC Rated
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
LG
Interrupt rating
50 kAIC at 415/480 Vac 25 kAIC at 600 Vac 85 kAIC at 240 Vac
Number of poles
Three-pole
