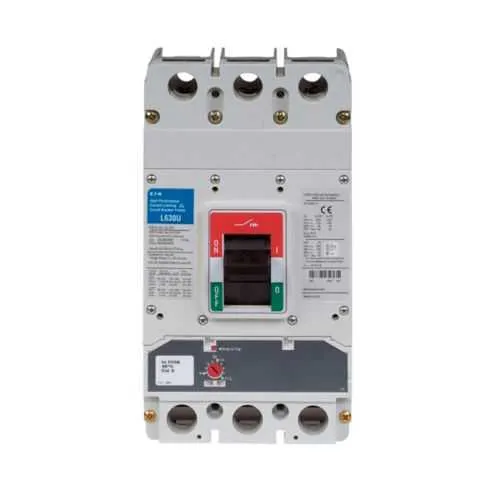

Eaton LGU3500FAG Complete MCCB - 200 kAIC at 240 Vac

Feature LG frame, three-pole design and 500 A rating deliver high-current protection in compact form.Business Impact This enables panel builders to consolidate protection across feeders without sacrificing space or serviceability, driving reliable decision-making in power distribution.Application Ideal for motor control centers and distribution panels where space is at a premium and robust short-circuit protection is required. Feature Fixed thermal, adjustable magnetic trip (T185) provides precise fault sensing and selectivity. Business Impact Reduces nuisance trips and improves coordination between upstream and downstream protections, cutting unplanned downtime. Application Suitable for machines and conveyors with variable load profiles where protection settings must adapt to changing conditions. Feature Line and load terminals with metric mounting hardware simplify wiring and mounting. Business Impact Speeds up installation, minimizes field wiring errors, and supports clean, repeatable panel layouts. Application Useful for control panels, switchgear assemblies, and electrical enclosures in industrial facilities. Feature HACR rating and global compliance (UL Listed, CSA Certified, IEC Rated) ensures broader applicability. Business Impact Supports cross-border installs and reduces compliance overhead during audits and commissioning. Application Beneficial for multi-site manufacturing or OEM projects delivering consistent protection across regions. Feature Interrupt ratings of 200 kAIC at 240 Vac (and 65 kAIC at 600 Vac; 150 kAIC at 415/480 Vac) enable rapid fault clearance. Business Impact Enhances system safety margins and reduces equipment damage during faults, improving overall uptime. Application Suited for panel boards and distribution networks with diverse voltage levels. Feature 11.9 lb weight and 5.48 in dimensions offer a compact yet sturdy protective device. Business Impact Facilitates handling, installation, and service in tight electrical rooms without compromising durability. Application Ideal for retrofit projects and new builds in constrained spaces.
