Eaton LGX3250FAG Molded Case Breaker - 200 kAIC
Part Number: LGX3250FAG
Quick Summary
LGX3250FAG Molded Case Breaker delivers reliable overcurrent protection for industrial control panels. This solution addresses nuisance trips and poor coordination that can stall production and raise maintenance costs. It carries IEC Rated, UL Listed, and CSA Certified marks, with CE compliance and HACR rating, ensuring global compatibility in diverse environments. By combining a rugged LG-frame complete breaker with fixed thermal protection and adjustable magnetic trip, it supports precise selectivity at 50/60 Hz and 250 A applications. The result is safer panels, easier upgrades, and predictable downtime, enabling engineers and procurement teams to meet performance targets while reducing total cost of ownership. This model integrates smoothly with existing control systems and standard metric mounting hardware, improving installation efficiency and long-term reliability.
Product Information
Extended Description
LGX3250FAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Complete breaker, Fixed thermal, adjustable magnetic trip type, Three-pole, 250A, 200 kAIC at 240/480 Vac, 65 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name

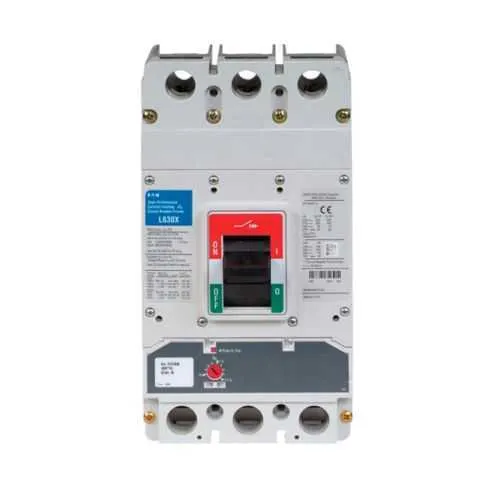

Eaton Series G complete molded case circuit breaker
Catalog Number
LGX3250FAG
UPC
786685183626
Product Length/Depth
4.09 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
250 A
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
LG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
65 kAIC at 600 Vac 200 kAIC at 240/480 Vac
Number of poles
Three-pole
