Eaton LGX3600FAG Complete MCCB - UL Listed, 600A/600V
Part Number: LGX3600FAG
Quick Summary
The Eaton LGX3600FAG complete molded case circuit breaker protects industrial power distribution panels and control circuits. Engineered to minimize nuisance trips and simplify maintenance in demanding environments, it delivers reliable protection across loads. With CE marking, IEC rating, and UL listing, the product supports global compliance and safety expectations. By leveraging the LG frame and a three-pole design, it delivers precise coordination and fast fault clearance, reducing downtime. This model features a fixed thermal element with adjustable magnetic trip, offering versatile protection suitable for panel builders and OEMs while supporting scalable protection schemes and easy integration into existing architectures.
Product Information
Extended Description
LGX3600FAG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 600A, 600 Vac, 200 kAIC at 240 Vac, 200 kAIC at 415 Vac, 200 kAIC at 480 Vac, 65 kAIC at 600 Vac, Line and load, Metric
Product Name

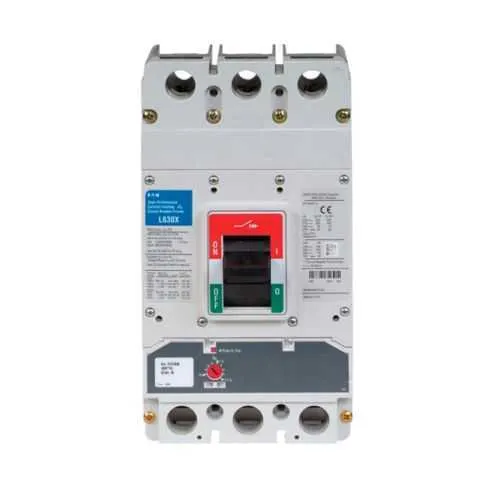

Eaton Series G complete molded case circuit breaker
Catalog Number
LGX3600FAG
UPC
786685183671
Product Length/Depth
5.48 in
Product Height
5.48 in
Product Width
5.48 in
Product Weight
11.9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
LG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
200 kAIC at 415 Vac 200 kAIC at 240 Vac 65 kAIC at 600 Vac 200 kAIC at 480 Vac
Number of poles
Three-pole
