Eaton LGX4630NN Molded Case Circuit Breaker - UL Listed
Part Number: LGX4630NN
Quick Summary
Eaton Series G molded case circuit breaker protects power panels by interrupting fault currents. Engineers often struggle to protect sensitive equipment while avoiding nuisance trips and cramped control enclosures. This unit carries CSA Certified, UL Listed, and CE Marked approvals, ensuring global safety and regulatory compliance for mixed electrical installations. With a 630 A amperage rating, 600 Vac voltage rating, and four-pole LG-frame construction, it delivers reliable protection for high-demand feeders. The design supports plug-in accessibility and straightforward installation in existing switchgear, reducing commissioning time. In addition, the HACR-rated catalog notes help align control-panel applications with HVAC or motor circuits, boosting system resilience and uptime.
Product Information
Extended Description
LGX4630NN Eaton: Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, fixed magnetic trip, Four-pole, 630A, 600 Vac, 200 kAIC at 240 Vac, 200 kAIC at 415 Vac, 200 kAIC at 480 Vac, 65 kAIC at 600 Vac, No term., 0% protected neutral pole
Product Name

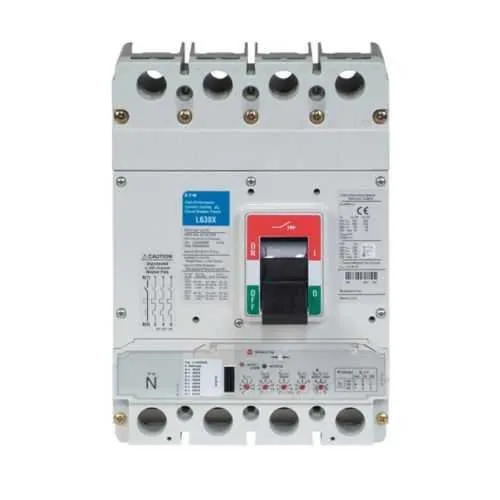

Eaton Series G molded case circuit breaker frame
Catalog Number
LGX4630NN
UPC
786685183190
Product Length/Depth
7.22 in
Product Height
7.22 in
Product Width
7.22 in
Product Weight
15.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified IEC Rated UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
630 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
LG
Circuit breaker frame type
Frame only
Protection
0% protected neutral pole
Terminals
Without terminals
Frame
LG
Interrupt rating
65 kAIC at 600 Vac 200 kAIC at 480 Vac 200 kAIC at 415 Vac 200 kAIC at 240 Vac
Number of poles
Four-pole
