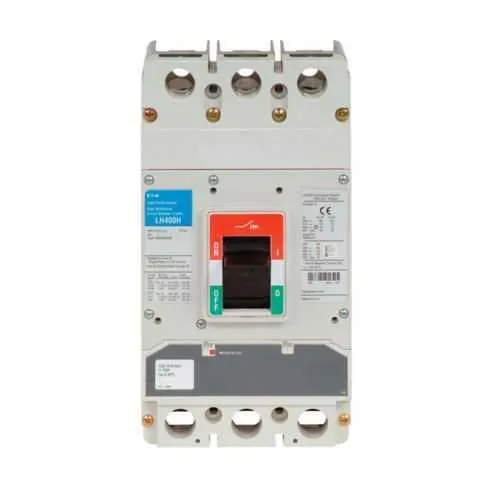

Eaton LHH3200FFG Complete MCCB - 100 kAIC @ 240V
Part Number: LHH3200FFG
Quick Summary
Eaton Series G MCCB (LHH3200FFG) provides reliable overcurrent protection for industrial power systems. Engineers often struggle with protecting large motor loads while maintaining selective coordination and minimizing nuisance trips in dense control panels. This model carries UL Listed, CSA Certified, and HACR-rated certifications, supporting NEC compliance and safe panel integration across global facilities. Designed for LG-frame assemblies, it offers a three-pole configuration and a 200 A rating that streamline installation, panel design, and future expansion, reducing downtime and maintenance costs. By combining robust interrupt performance with easy field wiring and standardized mounting, the LHH3200FFG helps you meet demanding industry requirements while lowering total cost of ownership.
Product Information
Extended Description
LHH3200FFG Eaton: Eaton Series G molded case circuit breaker, LG-frame, LH, Fixed thermal, fixed magnetic trip, Three-pole, 200A, 600 Vac, 100 kAIC at 240 Vac, 70 kAIC at 415 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, Line and load, Metric
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
LHH3200FFG
UPC
786685227061
Product Length/Depth
15.75 in
Product Height
7.75 in
Product Width
7.75 in
Product Weight
16.25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
LG breaker is HACR rated
Type
Complete breaker
Amperage Rating
200 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
LH
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
LG
Mounting hardware
Metric
Interrupt rating
100 kAIC at 240 Vac 70 kAIC at 415 Vac 35 kAIC at 600 Vac 65 kAIC at 480 Vac
Number of poles
Three-pole
