Eaton LL100M Condulet Form 5 Conduit - NEC/CEC
Part Number: LL100M
Quick Summary
LL100M Condulet Form 5 conduit outlet body from Eaton provides a rugged solution for industrial control panel conduit terminations. Engineers often struggle with enclosure integrity and corrosion resistance while maintaining tight installation schedules. This Condulet aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with UL certification documentation available to support compliance. In addition to meeting these core standards, it delivers durable malleable iron construction and a compact 1" trade size, enabling faster, more reliable installations across complex wiring systems while reducing rework and overall project cost.
Product Information
Extended Description
LL100M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL100M
UPC
782274756158
Product Length/Depth
6.2 in
Product Height
2.65 in
Product Width
1.9 in
Product Weight
1.38 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
1"
Material
Malleable iron

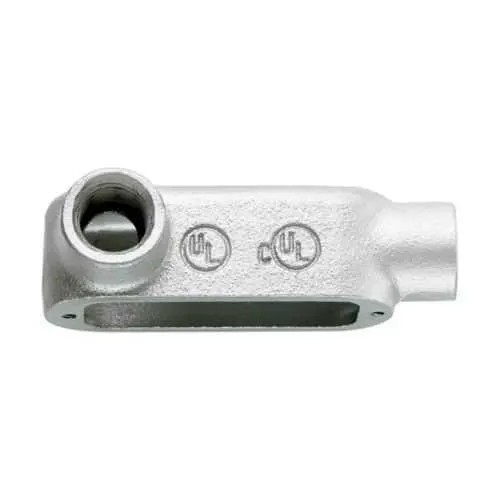

Eaton Crouse-Hinds LL100M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL100M
Feature: Malleable iron construction delivers high mechanical strength and long service life in demanding environments → Business Impact: Improves enclosure integrity and reduces maintenance costs over the equipment lifecycle → Application: Ideal for Form 5 conduit outlet bodies in machinery and panel enclosures. Feature: LL shape with 1" trade size provides flexible routing and easy integration with standard conduit systems → Business Impact: Accelerates installation, minimizes field modifications, and lowers labor hours → Application: Suitable for wiring runs in control panels and industrial cabinets. Feature: Precise dimensions (6.2 in length, 2.65 in height, 1.9 in width) and weight (1.38 lb) offer predictable fitment → Business Impact: Reduces rework and incompatibility risk in tight spaces → Application: Compatible with 1" conduits and standard mounting patterns. Feature: NEC/CEC standards alignment and Ordinary/Non-Hazardous Locations classification → Business Impact: Helps meet regulatory requirements and simplifies project approvals → Application: Used where safe, compliant conduit terminations are required. Feature: Availability of 3D CAD drawings, catalogs, and specification sheets → Business Impact: Streamlines design integration and procurement planning → Application: Quick reference for engineering and purchasing teams across wiring & connectivity projects.
Get a Quick Quote for a Eaton LL100M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL100M?
Enquire Now
FAQs
LL100M is designed for 1" trade-size conduit and uses standard Form 5 mounting. Verify enclosure clearance, align with the LL shape, and secure fittings per NEC/CEC requirements. Consult the 3D CAD drawing and Eaton's specification sheet to ensure correct alignment and compliant termination.
Key specs include a 6.2 in length, 2.65 in height, 1.9 in width, and a weight of 1.38 lb. The product uses malleable iron and supports a 1" trade size with an LL-shaped Form 5 configuration, suitable for ordinary location installations.
No. LL100M is specified for Ordinary/Non-Hazardous Locations. For hazardous environments, consider conduit bodies specifically rated for those conditions and ensure compliance with local electrical codes and standards.
LL100M complies with NEC/CEC standards and is intended for ordinary location use. UL certification reports are available to support U.S. and Canadian compliance, aiding validation for regulatory submissions and inspections.
Using LL100M delivers durable, compliant conduit terminations that reduce maintenance and rework, shorten installation times, and improve lifecycle reliability in control panels and industrial equipment.
